ATEN USB-C 4K Ultra Mini Dock – PD60W

Part No:
UH3235
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

UH3235-AT

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: UH3235 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

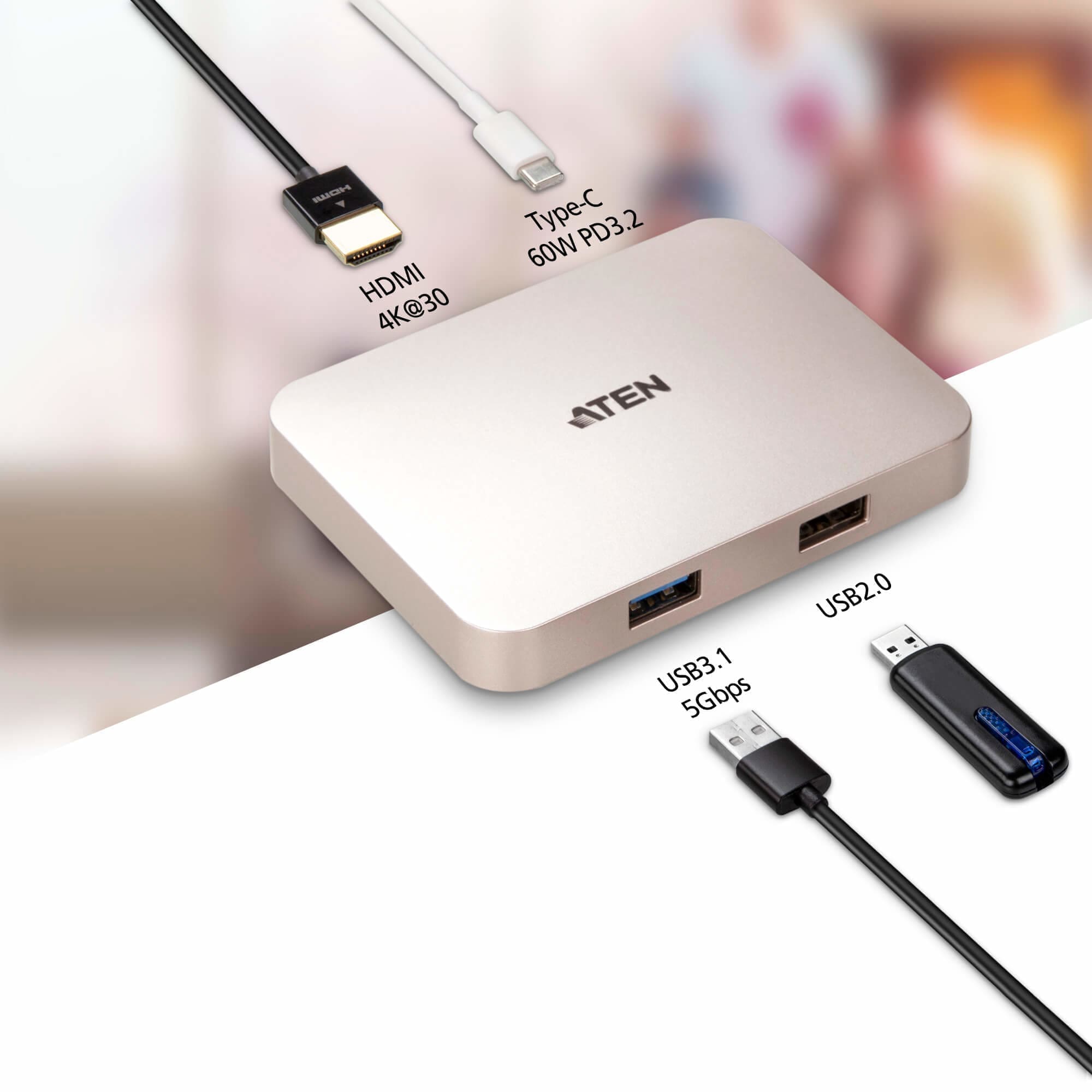

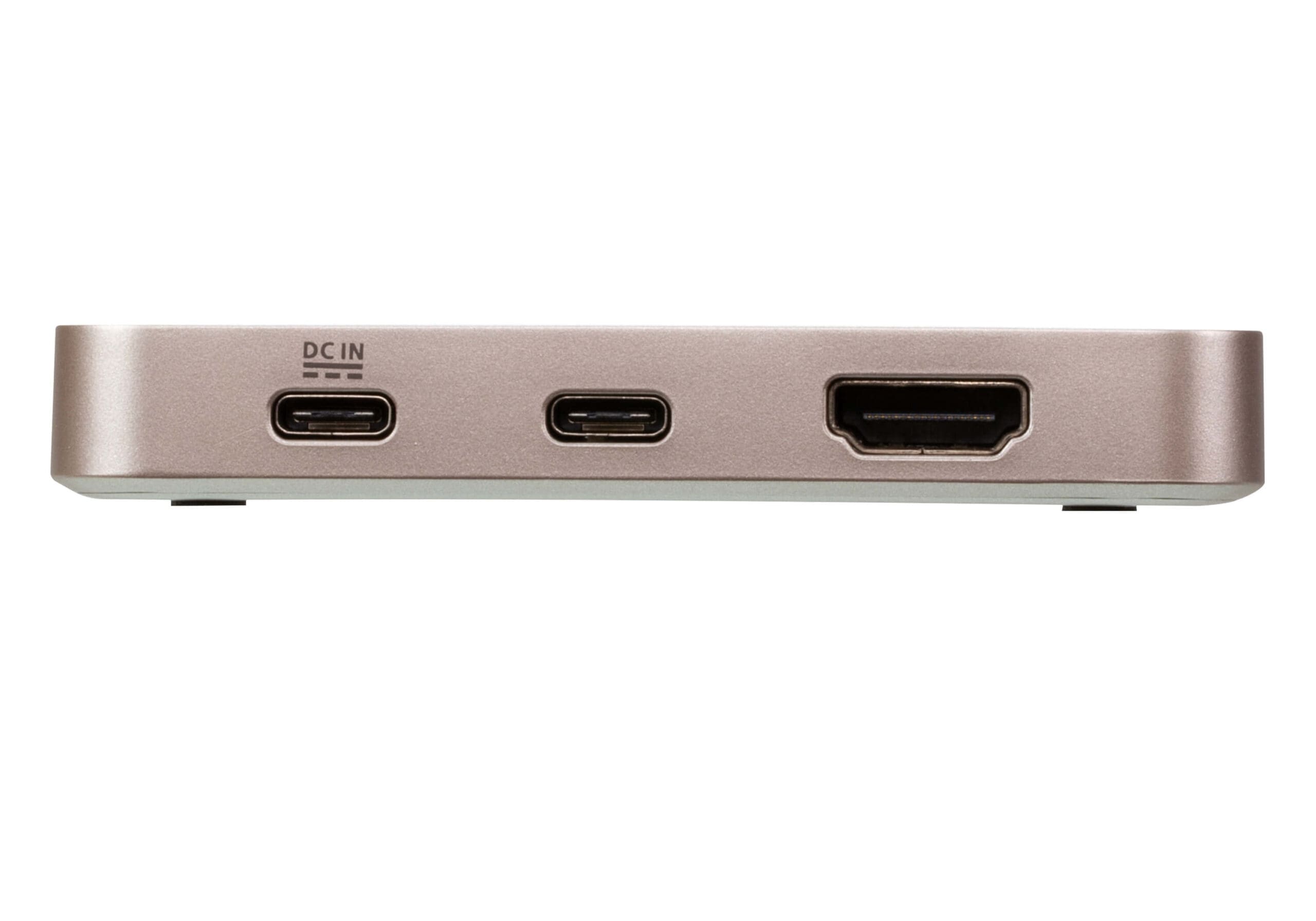

The UH3235 is a 4-in-1 multifunctional USB-C mini dock that features a USB 2.0 Type-A, USB 3.1 Gen 1 Type-A, HDMI and a USB-C DC-in port. With its wide range of compatibility, the UH3235 can support different operation systems such as PC, Mac, iPad Pro, Android Smartphone, and USB-C game console.

The HDMI supports up to 4K (3840 x 2160 @ 30 Hz) crystal clear video output that will bring users a higher level of enjoyment from watching videos, playing video games, or working from home. The UH3235 also supports USB-C Power Delivery Pass-Through up to 60W, which means it can provide power to your device via a USB-C PD power adapter with the PD profile specifications of 5V, 9V, 15V, 20V.

In addition, the integrated USB 3.1 Gen 1 Type-A port supports data transfer rate up to 5Gbps, giving seamless access to USB flash drive. The USB 2.0 Type-A port is for keyboard/mouse connection and can also avoid signal interference.

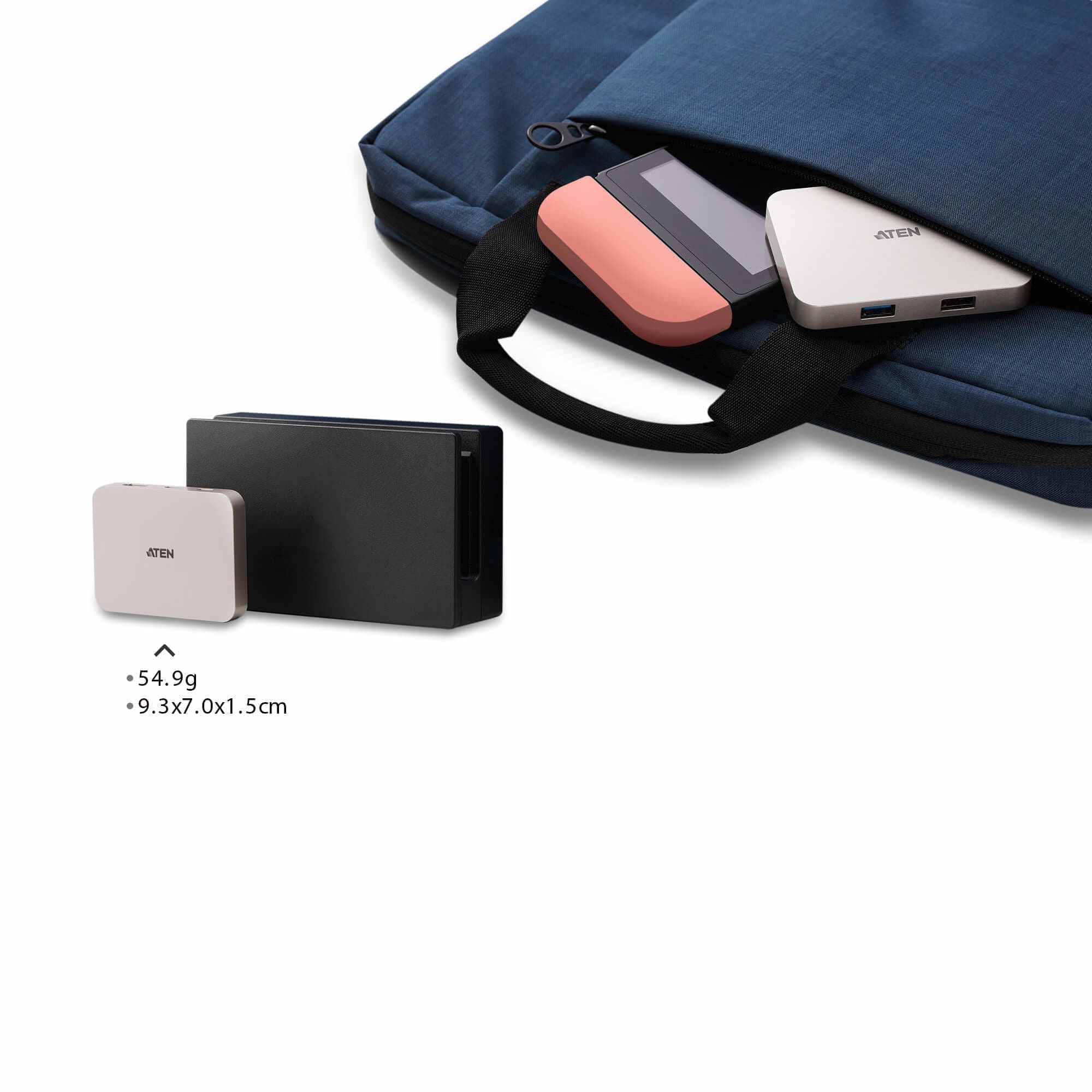

With highly portable and lightweight design, users can bring UH3235 anywhere and maintain necessary connection capability with just one cable. This is a perfect solution to maximize the functionality for your smart device.

Feature Feature Value
Host interface USB 2.0 Type-C
USB 2.0 ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB Power Delivery (USB PD) Yes
USB Power Delivery revision 2.0
USB Power Delivery up to 60 W
Product colour Rose gold
Hub interfaces HDMI, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Housing material Plastic
Certification RoHS
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Weight 82 g
Package width 35 mm
Package depth 125 mm
Package height 180 mm
Package weight 155 g
Products per master (outer) case 20 pc(s)
Master (outer) case width 262 mm
Master (outer) case length 375 mm
Master (outer) case height 203 mm
Master (outer) case gross weight 3.62 kg
Master (outer) case net weight 1.64 kg
Harmonized System (HS) code 84719000
Cable length 0.5 m

Additional information

Host interface

USB 2.0 Type-C
USB Power Delivery revision

2.0
Product colour

Rose gold
Housing material

Plastic
Operating temperature (T-T)

0 – 40 °C
Package width

35 mm
Package height

180 mm
Master (outer) case length

375 mm
Harmonized System (HS) code

84719000
USB 2.0 ports quantity

1
HDMI ports quantity

1
USB Power Delivery (USB PD)

Yes
USB Power Delivery up to

60 W
Hub interfaces

HDMI, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Certification

RoHS
Storage temperature (T-T)

-20 – 60 °C
Weight

82 g
Package depth

125 mm
Package weight

155 g
Master (outer) case width

262 mm
Master (outer) case height

203 mm
Cable length

0.5 m

Brand

Aten
