Description

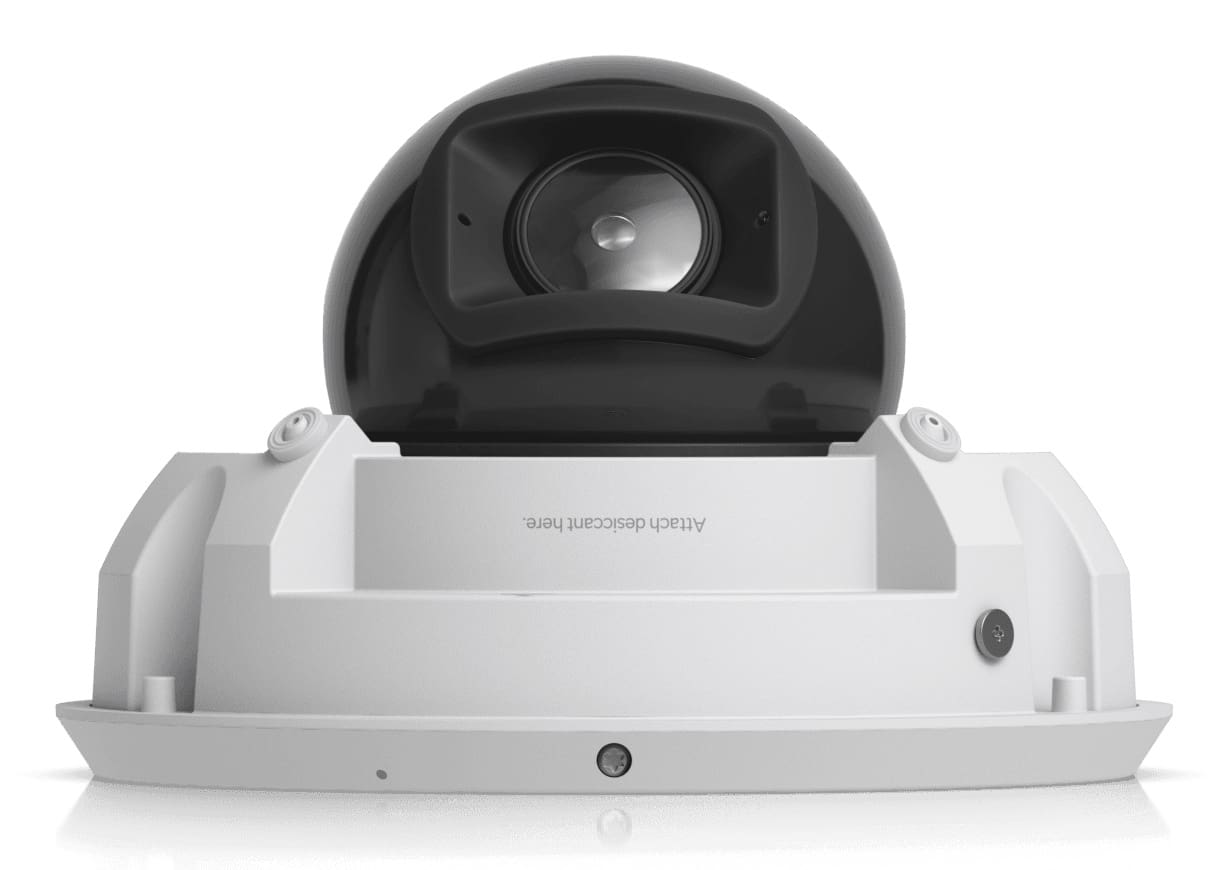

All-weather vandal-proof 4K PoE+ camera with a Multi-TOPS AI engine, 2.36x optical zoom, and a large 1/1.2″ CMOS sensor for exceptional low-light clarity and long-range IR night vision.
| Feature |
Feature Value |
| Type |
IP security camera |
| Placement supported |
Indoor & outdoor |
| Connectivity technology |
Wired |
| Infrared (IR) cut-off filter |
Yes |
| Processor model |
ARM Cortex-A53 |
| Built-in processor |
Yes |
| Mounting type |
Ceiling/wall |
| Product colour |
White |
| Form factor |
Dome |
| LED indicators |
Yes |
| Housing material |
Aluminium, Polycarbonate (PC) |
| International Protection (IP) code |
IP66 |
| IK code |
IK10 |
| Weatherproof |
Yes |
| Lens viewing angle, horizontal |
113.8 – 45.5° |
| Lens viewing angle, vertical |
61.9 – 25.8° |
| Lens viewing angle, diagonal |
134 – 52° |
| Sensor type |
CMOS |
| Number of sensors |
1 |
| Optical sensor size |
25.4 / 1.2 mm (1 / 1.2″) |
| Zoom capability |
Yes |
| Optical zoom |
2.36x |
| Focal length range |
5.9 – 13.8 mm |
| Maximum aperture number |
2.9 |
| Minimum aperture number |
1.5 |
| Night vision |
Yes |
| Night vision distance |
40 m |
| LED type |
IR |
| Maximum resolution |
3840 x 2160 pixels |
| Total megapixels |
8 MP |
| Video recording |
Yes |
| Frame rate |
30 fps |
| Noise reduction |
Yes |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Image quality adjustment |
Brightness, Contrast, Sharpness, White balance |
| Built-in microphone |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Bluetooth |
No |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Built-in HDD |
No |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Ethernet LAN (RJ-45) ports |
1 |
| Human and vehicle targets classification |
Yes |
| Reset button |
Yes |
| Power source type |
PoE+ |
| Power consumption (max) |
15 W |
| DC output voltage |
42.5, 48, 54, 57 |
| Operating temperature (T-T) |
-20 – 50 °C |
| Operating relative humidity (H-H) |
0 – 90% |
| Height |
108.8 mm |
| Diameter |
16.4 cm |
| Weight |
1.2 kg |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Number of cameras |
1 |
| Mounting kit |
Yes |
| Manual |
Yes |
