Description

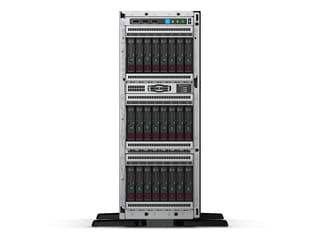

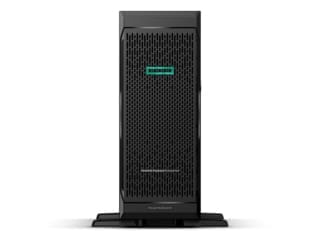

Do you need a robust server for your SMB and remote offices? HPE ProLiant ML350 Gen10 Server delivers a secure dual-socket tower server with performance, expandability, and proven reliability making it the choice for expanding SMBs, remote offices of larger businesses, and enterprise data centers. The HPE ML350 Gen10 Server leverages the Intel® Xeon® Scalable processors with up to 71%[1] performance gain and 27% increase in cores[2], plus the 2666 MT/s HPE DDR4 SmartMemory supports up to 3.0 TB[3] and 11%[4] faster than 2400 MT/s. The shorter re-designed rackable chassis with multiple upgrade options provides flexibility that can expand as your business needs grow. It supports 12 Gb/s SAS, NVMe SSD, embedded 4x1GbE NIC with a broad range of graphics and compute options. Supported by the HPE Pointnext industry-leading service organization and ease of deployment, the HPE ML350 Gen10 Server helps you transform to a digital business with more agility and all within your limited IT budget.
– Support for Intel Xeon Scalable processors – full stack.
– 2600 MT/s HPE DDR4 SmartMemory RDIMM/LRDIMM offering 8, 16, 32, or 64 GB.
– Security through firmware and standard chassis features.
– Re-designed shorter chassis with multiple drive cage options for upgrade, including 8 SFF Express Bay to support NVMe solid state drives.
– Graphic process unit (GPU) support for graphic-intensive applications like Virtual Desktop Infrastructure (VDI) and machine learning.
– Build a fully functional server with ClearOS Software from HPE that is just right for you at no upfront cost. For more information, check the ClearOS link on the right.
Perform with Unmatched Versatility
The HPE ProLiant ML350 Gen10 Server supports up to two Intel Xeon Scalable processors, starting from Bronze thru Platinum, 4 cores expanding up to 28 core processors offering unparalleled performance.

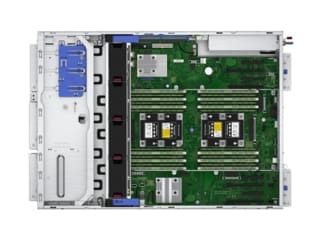

Up to 24 DIMM slots to support the 2600 MT/s HPE DDR4 SmartMemory, reducing data loss and downtime with the HPE Gen10 technology licensed Fast Fault Tolerance feature while increasing workload performance and power efficiency.
It supports a wide range of solutions from Azure to Docker to ClearOS along with the traditional operating systems.
Graphic processing unit (GPU) expansion supports up to four units to accelerate performance in Virtual Desktop Infrastructure (VDI) applications and machine learning for financial services, surveillance and security, educational and scientific research, retail and medical imaging.
Expand When Your Business Needs Grow
The HPE ProLiant ML350 Gen10 Server delivers expandability with a wide range of drive upgrade options supporting 8 to 24 SFF or 16 SFF when mixed with optional 8 NVMe PCIe solid state drives, 4 to 12 LFF hot plug or non-hot plug drive options protecting your IT investment in hybrid environment.

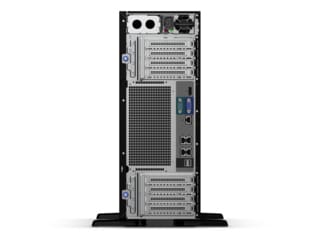

Large expansion capacity with (8) PCIe slots, (6) USB ports, 5U rack conversion, and power supply options.
Embedded 4x1GbE and choice PCIe standup 1GbE, 10GbE or 25GbE adapters provide you flexibility of networking bandwidth and fabric so you can scale and adapt to different needs as your business grows.
Security Innovations
The HPE ProLiant ML350 Gen10 Server is part of the Hewlett Packard Enterprise offering of industry standard servers with major firmware anchored directly into the silicon security protection built in across the server lifecycle starting with Silicon Root of Trust.
Millions of lines of firmware code run before server operating system boots. With Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
Secure Recovery allows server firmware to roll back to the last, known-good state or factory settings after detection of compromised code.
Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and to securely store artifacts used to authenticate the server platforms.
Industry Leading Services and Ease of Deployment
The HPE ProLiant ML350 Gen10 Server comes with a complete set of HPE Technology Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
Services provided under Operational Services include: Flexible Capacity, Datacenter Care, Infrastructure Automation, Campus Care, Proactive Services and Multi-vendor coverage.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
| Feature |
Feature Value |
| Processor family |
Intel® Xeon® Gold |
| Processor manufacturer |
Intel |
| Processor model |
5118 |
| Processor frequency |
2.3 GHz |
| Processor generation |
1st Generation Intel® Xeon® Scalable |
| Processor boost frequency |
3.2 GHz |
| Processor cores |
12 |
| Processor cache |
16.5 MB |
| Memory channels supported by processor |
Hexa |
| Number of processors installed |
2 |
| Thermal Design Power (TDP) |
105 W |
| Processor cache type |
L3 |
| Processor socket |
LGA 3647 (Socket P) |
| Processor lithography |
14 nm |
| Processor threads |
24 |
| Processor operating modes |
64-bit |
| Stepping |
M0 |
| Processor codename |
Skylake |
| Tcase |
81 °C |
| Maximum internal memory supported by processor |
768 GB |
| Memory types supported by processor |
DDR4-SDRAM |
| Memory clock speeds supported by processor |
2666 MHz |
| ECC supported by processor |
Yes |
| Execute Disable Bit |
Yes |
| Maximum number of PCI Express lanes |
48 |
| Processor package size |
76.0 x 56.5 mm |
| Supported instruction sets |
AVX, AVX 2.0, AVX-512, SSE4.2 |
| Processor code |
SR3GF |
| Scalability |
4S |
| Embedded options available |
Yes |
| Conflict-Free processor |
Yes |
| Internal memory |
32 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
128 GB |
| Memory slots |
24 |
| ECC |
Yes |
| Memory layout (slots x size) |
2 x 16 GB |
| Total storage capacity |
0 GB |
| RAID support |
Yes |
| Number of HDDs installed |
0 |
| Number of HDDs supported |
8 |
| Supported HDD sizes |
2.5″ |
| Ethernet LAN |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports |
4 |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
| PCI Express slots version |
3.0 |
| Chassis type |
Tower (4U) |
| Operating system installed |
No |
| Compatible operating systems |
Microsoft Windows Server
Canonical Ubuntu
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
Citrix XenServer |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel TSX-NI |
Yes |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI version |
1.00 |
| Processor ARK ID |
120473 |
| Redundant power supply (RPS) support |
Yes |
| Power supply |
800 W |
| Number of redundant power supplies installed |
2 |
| Sustainability certificates |
ENERGY STAR |
| Width |
174 mm |
| Depth |
648 mm |
| Height |
462.5 mm |
| Weight |
24 kg |
