Description
Easy to Set Up
An ideal rack for small businesses and space-constrained environments, the Dell PowerEdge R310 features a compact chassis, advanced systems-management capabilities and an optional interactive LCD to help simplify setup and maintenance.
Easy to Manage
The Dell PowerEdge R310 lets you focus on running your business. The optional advanced embedded management engine, the optional Lifecycle Controller, automates common management tasks and enables zero-media, low-touch deployment that is efficient, secure, and user-friendly.
– The optional Dell Lifecycle Controller is integrated on the server and can simplify administrator tasks by performing a complete set of provisioning functions such as system deployment, system updates, hardware configuration and diagnostics from a single intuitive interface called Unified Server Configurator in a pre-OS environment. This eliminates the need to use and maintain multiple pieces of disparate CD/DVD media.
– With Dell Lifecycle Controller server deployment automation, the R310 is up and running fast. Also part of the Dell OpenManage portfolio is the Dell Management Console, which is included with every Dell server and provides IT administrators with a consolidated console view of their IT infrastructure.
Business Value
You are serious about your business and you need a server that can handle serious business. The PowerEdge R310 rack server has the right balance of performance, enterprise-class features and business value to meet the needs of small to midsized businesses and branch offices alike.
– The PowerEdge R310 has price/performance that includes options for full redundancy in power supplies and hot-swap hard drives.
– The processor options and memory configurations are balanced to run typical business applications such as Windows® Small Business Server, Business Center Essentials, SQL Workgroup/Standard, Oracle® 11g Standard, VMware® , Active Directory® , SharePoint® , and file/print.
– Keep your data safe with multiple RAID options and up to four 2.5″ (6 cm) or 3.5″ (9 cm) hard drives.
Customer-Inspired Design
By listening to and focusing on the details, we have delivered on our customers’ inspiration: simplicity of operations married with innovative design features. We see the Dell design as a revolution of system commonality and customer-inspired usability.
– All external ports, power supplies and LED lights/LCD screens are in the same location for familiar user experience as well as easy installation and deployment.
– Robust, metal hard drive carriers and organized cabling are designed to improve component access and airflow across the server

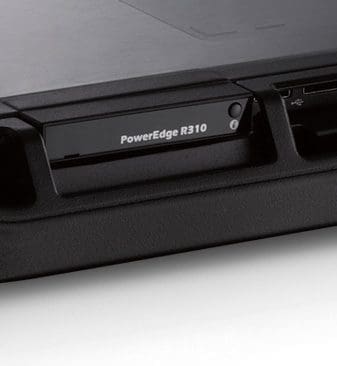

– The PowerEdge R310 streamlined design also provides quiet acoustics and an optional interactive LCD screen positioned on the front of the server for ease of monitoring.
| Feature |
Feature Value |
| Processor family |
Intel® Xeon® 3000 Sequence |
| Processor manufacturer |
Intel |
| Processor model |
X3430 |
| Processor frequency |
2.4 GHz |
| Processor boost frequency |
2.8 GHz |
| Processor cores |
4 |
| Processor cache |
8 MB |
| Motherboard chipset |
Intel® 3420 |
| Memory channels supported by processor |
Dual |
| Number of processors installed |
1 |
| Thermal Design Power (TDP) |
95 W |
| Processor cache type |
Smart Cache |
| System bus rate |
2.5 GT/s |
| Processor socket |
LGA 1156 (Socket H) |
| Processor lithography |
45 nm |
| Processor threads |
4 |
| Processor operating modes |
64-bit |
| Stepping |
B1 |
| FSB Parity |
N |
| Bus type |
DMI |
| Processor codename |
Lynnfield |
| Tcase |
72.7 °C |
| Maximum internal memory supported by processor |
32 GB |
| Memory types supported by processor |
DDR3-SDRAM |
| Memory clock speeds supported by processor |
800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| ECC supported by processor |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1×16, 2×8, 4×4 |
| Processor package size |
37.5 x 37.5 mm |
| Supported instruction sets |
SSE4.2 |
| Processor code |
SLBLJ |
| Physical Address Extension (PAE) |
36 bit |
| Embedded options available |
Y |
| Number of Processing Die Transistors |
774 M |
| CPU multiplier (bus/core ratio) |
18 |
| Processing Die size |
296 mm² |
| Processor series |
Intel Xeon 3400 Series |
| Conflict-Free processor |
N |
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
| Maximum internal memory |
32 GB |
| Memory slots |
6x DIMM |
| ECC |
Y |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
2 x 2 GB |
| Maximum storage capacity |
8 TB |
| Total storage capacity |
1000 GB |
| Optical drive type |
DVD-RW |
| Number of HDDs installed |
2 |
| HDD capacity |
500 GB |
| HDD size |
3.5″ |
| Hot-swap |
Y |
| Internal drive bays |
4 |
| Maximum graphics card memory |
8 MB |
| Networking features |
Gigabit Ethernet |
| LAN controller |
Broadcom BCM5716 |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 2.0 ports quantity |
4 |
| VGA (D-Sub) ports quantity |
2 |
| Serial ports quantity |
1 |
| PCI Express x8 slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express slots version |
2.0 |
| Chassis type |
Rack (1U) |
| Compatible operating systems |
Microsoft SQL Server 2008 R2/Windows Small Business Server 2008/Essential Business Server 2008/Server 2008 SP2/R2, x86/x64;
Novell;
Red Hat Linux;
Solaris10 x86-64. |
| CPU configuration (max) |
1 |
| Intel Rapid Storage Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel® Turbo Boost Technology |
1.0 |
| Intel® Quick Sync Video Technology |
N |
| Intel® InTru™ 3D Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Insider™ |
N |
| Intel Flex Memory Access |
N |
| Intel® AES New Instructions (Intel® AES-NI) |
N |
| Intel Trusted Execution Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel Demand Based Switching |
Y |
| Intel Clear Video Technology |
N |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
N |
| Intel 64 |
Y |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Dual Display Capable Technology |
N |
| Intel FDI Technology |
N |
| Intel Fast Memory Access |
N |
| Processor ARK ID |
42927 |
| Redundant power supply (RPS) support |
Y |
| Power supply |
350 W |
| Number of power supply units |
1 |
| Width |
434 mm |
| Depth |
610 mm |
| Height |
42.4 mm |
| Dimensions (WxDxH) |
434 x 610 x 42.4 mm |
| Mac compatibility |
N |
| Graphics card |
G200eW |
| Reboot protection |
Y |
