Description
Compact, Secure, and Reliable Design for an Affordable Solution

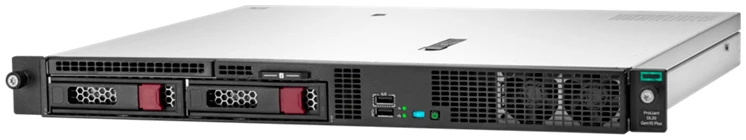

HPE ProLiant DL20 Gen10 Plus server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
HPE ProLiant DL20 Gen10 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.
Handle light workloads up to the some of the most demanding requirements with affordable configuration choices and a wide variety of HPE Qualified Options.
| Feature |
Feature Value |
| Processor family |
Intel Xeon E |
| Processor manufacturer |
Intel |
| Processor model |
E-2314 |
| Processor frequency |
2.8 GHz |
| Processor boost frequency |
4.5 GHz |
| Processor cache |
8 MB |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Internal memory |
16 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
128 GB |
| Memory slots |
4x DIMM |
| ECC |
Y |
| Memory clock speed |
3200 MHz |
| Memory layout (slots x size) |
1 x 16 GB |
| Maximum storage capacity |
36 TB |
| RAID support |
Y |
| Optical drive type |
N |
| HDD interface |
Serial Attached SCSI (SAS) |
| RAID levels |
0, 1, 5, 10 |
| LAN controller |
Broadcom BCM5720 |
| Ethernet LAN |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| VGA (D-Sub) ports quantity |
1 |
| Chassis type |
Rack (1U) |
| Compatible operating systems |
Microsoft Windows Server 2019: Essentials, Standard, Datacenter, Hyper-V
Microsoft Windows Server 2022: Essentials, Standard, Datacenter
Red Hat Enterprise Linux (RHEL): 8.4 (64 bit, includes KVM)
SUSE Linux Enterprise Server (SLES): 12 SP5, 15 SP3 (64 bit, includes KVM & Xen)
VMware ESXi: 7.0 U3 |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel Software Guard Extensions (Intel SGX) |
Y |
| Intel 64 |
Y |
| Intel Virtualization Technology (VT-x) |
Y |
| Redundant power supply (RPS) support |
Y |
| Power supply |
290 W |
| Power supply input voltage |
100 – 240 V |
| Power supply input frequency |
50/60 Hz |
| Width |
434.6 mm |
| Depth |
382.2 mm |
| Height |
43.2 mm |
