Description

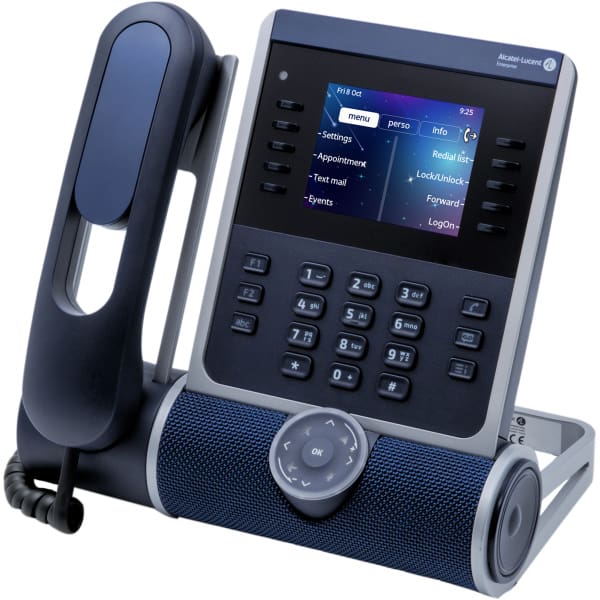

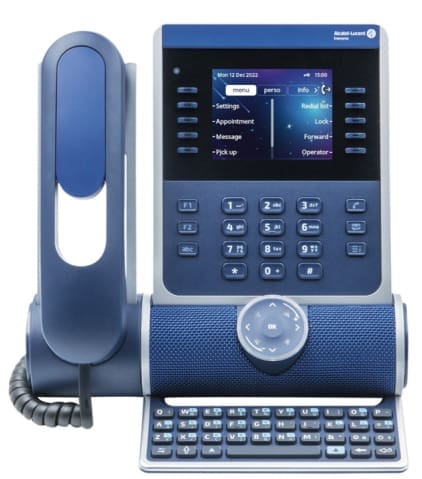

3.5’’ colour screen, 2×5 programmable keys with blue LED, super-wideband, corded handset, 2 USB-C ports, ALE-120 expansion modules
The ALE DeskPhones Enterprise range is the next-generation of innovative business phones with a sleek industrial design. Built for every work style and workplace they support vertical industry requirements in enterprise environments.
The modular design enabled by the hardware and software customisation capabilities offers a variety
of configurations to satisfy all worker generation business communications requirements from touchscreen to physical soft keys, as well as dial-pad.
The ALE DeskPhones Enterprise range is robust, future-proof, energy efficient, and durable. They are based on a state-of-the-art hardware and software platform with rich connectivity options (including Dual Port Gigabit Ethernet, Wi-Fi, Bluetooth®, Dual USB-C, and NFC) to be used in any communications infrastructure, wired or wireless, from on premises to cloud deployment, and are retro-compatible with
customer installations.
They can be securely deployed at the office, at home, in flex offices, in huddle rooms and in dedicated verticals environment such as hospitality, health care, finance or education. They offer smart power consumption management based on dynamic power class management, dynamic USB power allocation, presence detection and ambient light sensors. A control smart pad provides an evolved user experience. A wide variety of options are available for professional end users including; corded handsets, cordless handsets, or no handsets, a wired or wireless headset option, a key expansion module, as well as a physical or virtual alphabetic keyboard.
The ALE DeskPhones Enterprise range is designed for 3D Symphonic HD Audio quality to complement workers’ computers and mobile phones with the AudioHub feature. 3D Symphonic HD+ Audio quality is based on a multi-microphone, bass reflex system with passive radiator for clear natural voice, and full-duplex audio for simultaneous conversation.
They provide an all-in-one product line, offering business phone, speaker phone, and conference phone capabilities, thus minimizing the number of devices in the enterprise space.
| Feature |
Feature Value |
| Product type |
IP Phone |
| Product colour |
Blue |
| Handset type |
Wired handset |
| Display |
LCD |
| Display diagonal |
8.89 cm (3.5″) |
| Display resolution |
240 x 320 pixels |
| Speakerphone |
Yes |
| Ethernet LAN |
Yes |
| Bluetooth |
No |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| DHCP client |
Yes |
| Near Field Communication (NFC) |
Yes |
| Headset connectivity |
RJ-9 |
| USB 2.0 ports quantity |
2 |
| RJ-9 ports quantity |
1 |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (typical) |
1.4 W |
| Operating temperature (T-T) |
-5 – 45 °C |
| Operating relative humidity (H-H) |
5 – 85% |
| Storage temperature (T-T) |
-25 – 70 °C |
| Width |
228 mm |
| Depth |
162 mm |
| Height |
219 mm |
| Weight |
1.48 kg |
| Number of handles included |
1 pc(s) |
| Base station |
Yes |
| Headset included |
Yes |
