Description

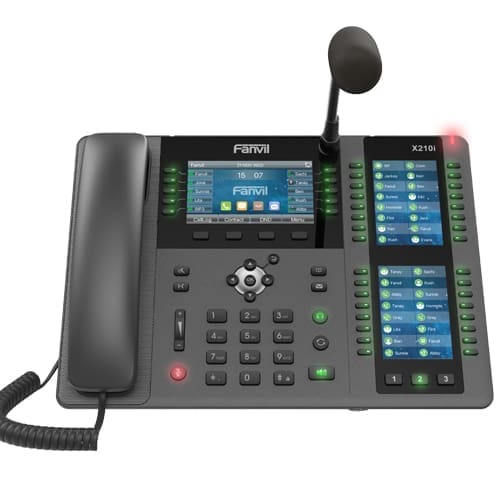

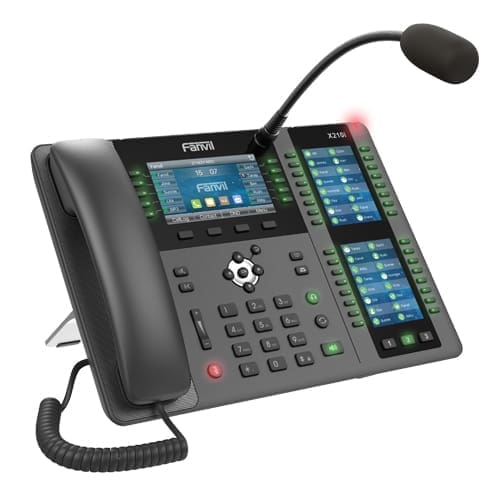

X210i is a visualization paging console phone for industry customer. It is equipped with a gooseneck microphone and supports HD hands-free calling. With intelligent programmable DSS buttons, you can set up a one-click call function to improve communication efficiency. It is compatible with the standard SIP protocol and can be used as a monitoring center or host for office manager with functions such as make calls for external & internal phones, two-way intercom, monitoring, and broadcasting. The X210i improves the management efficiency and emergency response capabilities.
Good sound pickup effect
Professional directional gooseneck microphone presents sound with good reproduction, high definition and low noise
HD audio for speakerphone and handset
Newly-added support for Opus and a larger audio cavity bring abundant, strong low frequency effect. The speakerphone adopts full net coverage delivering crystal clear, life-like voice communication.
Unified Designed With Two Side Displays
Convenient operation on X210i with two 3.5″ side DSS Key displays, no need to add external extension modules.
· With three page-switch buttons, the side displays allow to set up to 96 DSS keys (32 physical), and plus 10 DSS keys on the main display, up to 106 DSS keys are available in total for BLF, speed dial, group broadcasting function etc.
Video Surveillance
Equipped with video codec H.264, X210i enables to be integrated with multiple IP cameras. With simply a press on the DSS keys, you can view the video of the selected camera in real time.
Remote control of Fanvil SIP video
door phone and barrier gate· X210i enables to be integrated with Fanvil SIP video door phone, so that you can have a two-way talk with visitors and unlock the door from your X210i IP phone if you deem them worthy
· When the license plate recognition fails to open the barrier gate, the driver can contact the management center through the intercom terminal installed at the entrance and exit of the parking lot, and the management center remotely help the driver to open the barrier gate through X210i.
Broadcast commands are
issued instantlyEach broadcast group is displayed on the DSS screen, you can press the DSS keys to select the broadcast group，and use the gooseneck microphone to make a “one-on-one” or “one-to-many” broadcast calls for emergency notifications, suitable for places where coordination is needed for work relationships.
Rich Extension Function Door
Phone IntegrationX210i offers a variety of device connections including Wi-Fi (via Wi-Fi dongle), integrated Bluetooth, EHS headset, USB port for charging smartphone or other devices. Two Gigabit ports allow you to connect your desktop computer or laptop on the phone – no need for extra cabling.
| Feature |
Feature Value |
| Product type |
IP Phone |
| Product colour |
Black, Grey |
| Handset type |
Wired handset |
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Lines quantity |
20 lines |
| Phonebook capacity |
2000 entries |
| Answering machine |
Yes |
| Call log entries |
1000 |
| Call waiting |
Yes |
| Speed dialling |
Yes |
| Intercom |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Conference call |
Yes |
| Redialing |
Yes |
| Do not disturb function |
Yes |
| Call park |
Yes |
| Call pick up |
Yes |
| Anonymous call |
Yes |
| Phonebook sharing |
Yes |
| Call transfer |
Yes |
| Message-waiting indicator (MWI) |
Yes |
| Volume control |
Buttons |
| Keypad number of keys |
77 |
| Number of function keys |
6 |
| Firmware upgradeable |
Yes |
| Touchscreen |
No |
| Display |
LCD |
| Display diagonal |
10.9 cm (4.3″) |
| Display resolution |
480 x 272 pixels |
| Speakerphone |
Yes |
| Number of microphones |
1 |
| Microphone mute |
Yes |
| Microphone frequency |
20 – 20000 Hz |
| Voice codecs |
AMR, AMR-WB, G.711a, G.711u, G.722, G.723.1, G.726-32, G.729ab, OPUS, iLBC |
| Noise reduction |
Yes |
| Echo cancellation |
Yes |
| Voice activity detection |
Yes |
| Adaptive jitter buffers |
Yes |
| Comfort noise generation (CNG) |
Yes |
| Packet loss concealment (PLC) |
Yes |
| Video call |
Yes |
| Video resolutions |
352 x 288,640 x 480 pixels |
| Video codecs |
H.264 |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Bluetooth |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Bluetooth version |
2.1+EDR |
| Supported network protocols |
SIP2.0 UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| Quality of Service (QoS) support |
Yes |
| Syslog |
Yes |
| Networking standards |
IEEE 802.1x |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-9 ports quantity |
2 |
| Power over Ethernet (PoE) |
Yes |
| Input current |
2 A |
| Operating temperature (T-T) |
0 – 45 °C |
| Operating relative humidity (H-H) |
10 – 95% |
| Width |
309 mm |
| Depth |
214 mm |
| Height |
187 mm |
| Package width |
323 mm |
| Package depth |
301 mm |
| Package height |
71 mm |
| Number of handles included |
1 pc(s) |
| Cables included |
LAN (RJ-45) |
