Description
The Yealink CM20 is a premium ceiling microphone, expertly crafted to enhance audio performance in professional conference settings. Boasting an advanced array of 16 omnidirectional microphones, the CM20 captures sound in 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.Designed for medium to large conference rooms, the CM20 combines advanced technology with a sleek, elegant design, making it a perfect blend of functionality and style.
The Yealink CS10, a low-profile (120mm) 2-way coaxial network speaker, excels in video conferencing with its exceptional audio performance. Designed specifically for the modern meeting environment, the CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms. Versatile and engineered for ease of use, the CS10 is a PoE-enabled speaker that can optionally deployed with variety supplementary components, simplifying installation across diverse ceiling types. Its covert design, establishes the CS10 as more than just a speaker – it is an essential addition to your meeting space, enhancing both visual and auditory experiences.

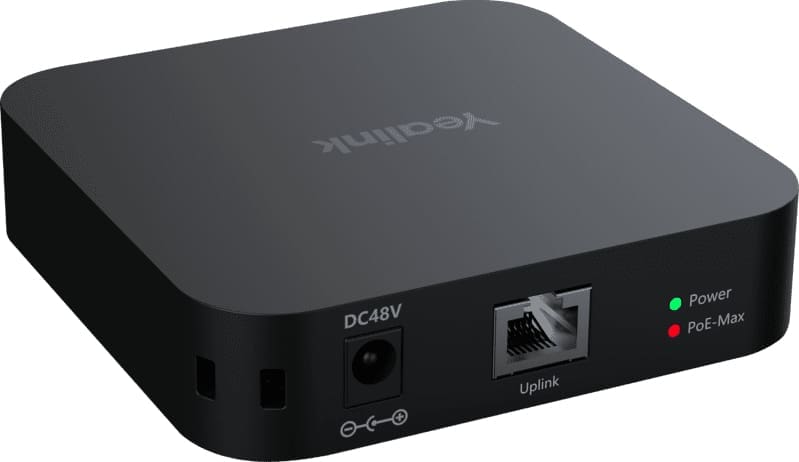

Meet Yealink RCH40, the Gigabit PoE+ Switch designed for Meeting Room Audio & Video Networking. With four Gigabit Ethernet downlink ports and one Gigabit Ethernet uplink port, Yealink RCH40 supports 802.3af/at standards, delivering up to 30W of power per port. With a total PoE power budget of up to 90W, it’s an ideal solution for connect-ing audio and video devices in video conference systems.
| Feature |
Feature Value |
| Product colour |
Black, Grey |
| Placement supported |
Ceiling |
| Frequency range |
100 – 20000 Hz |
| Impedance |
8 Ω |
| Microphone sensitivity |
94 dB |
| Microphone frequency |
120 – 16000 Hz |
| Microphone direction type |
Omnidirectional |
| Number of microphone arrays |
16 |
| Signal-to-Noise Ratio (SNR) |
86 dB |
| Device interface |
RJ-45 |
| Ethernet LAN (RJ-45) ports |
4 |
| Power source type |
PoE |
| Operating temperature (T-T) |
0 – 50 °C |
| Operating relative humidity (H-H) |
5 – 90% |
| Storage temperature (T-T) |
0 – 70 °C |
| Package type |
Box |
| Quantity |
1 |
| Mounting kit |
Yes |
| Screws included |
Yes |
| User guide |
Yes |
| Packaging content |
CM20 Microphone, White Mesh Cover (Black Optional), Quick Start Guide, Assembly Fixing Bracket, Dust Cover, Length-Adjustable Pole (Optional), Bracing Bridge*1 pair, Suspend Pole Adapter (Optional), Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide), Self-tapping Screw*6 (T4*30mm), Machine Screw*5 (3*6PMOZN3+), Bracing Bredge Screw*20 (M3*6PWMHOZN3) |
