Description

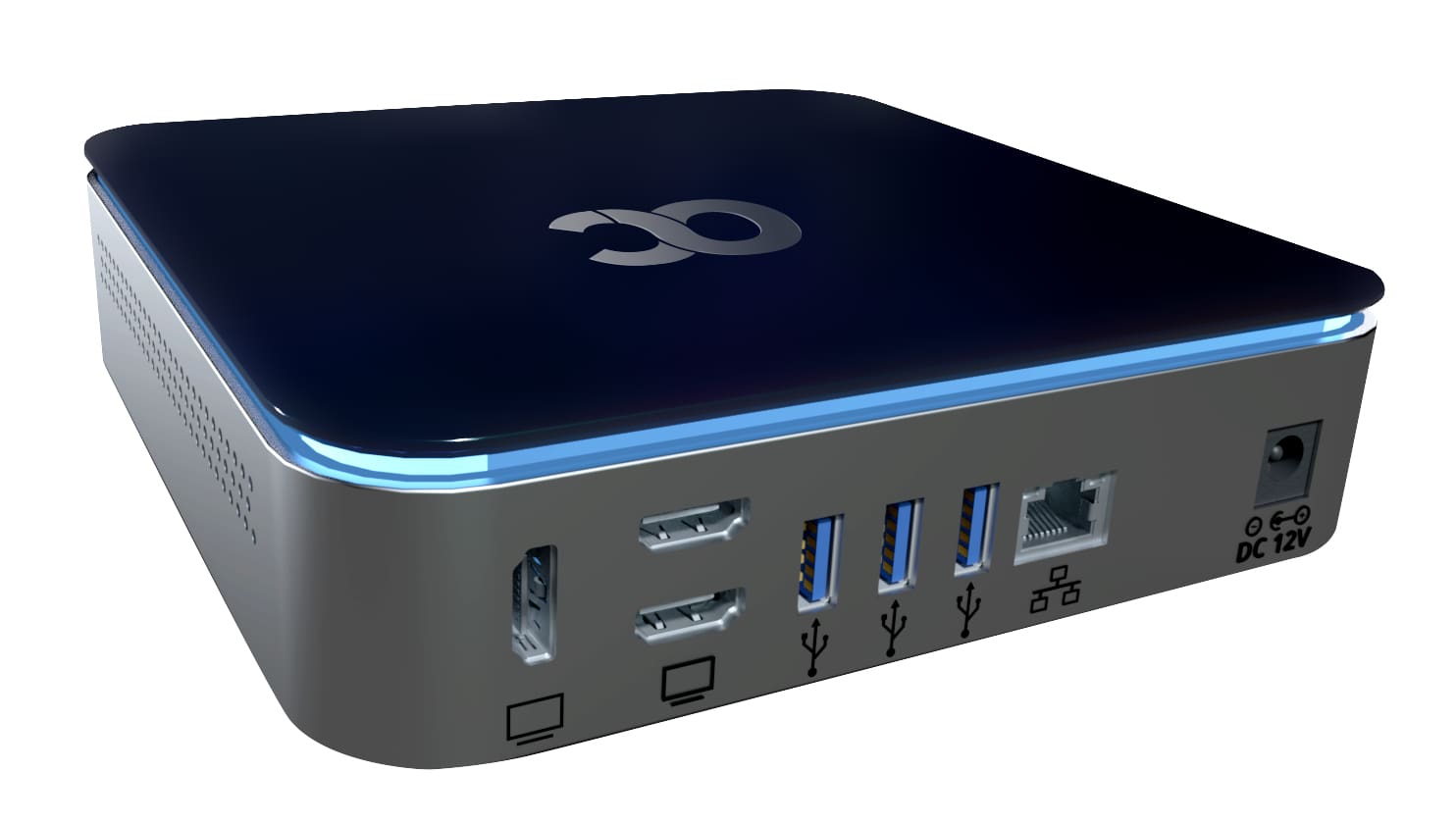

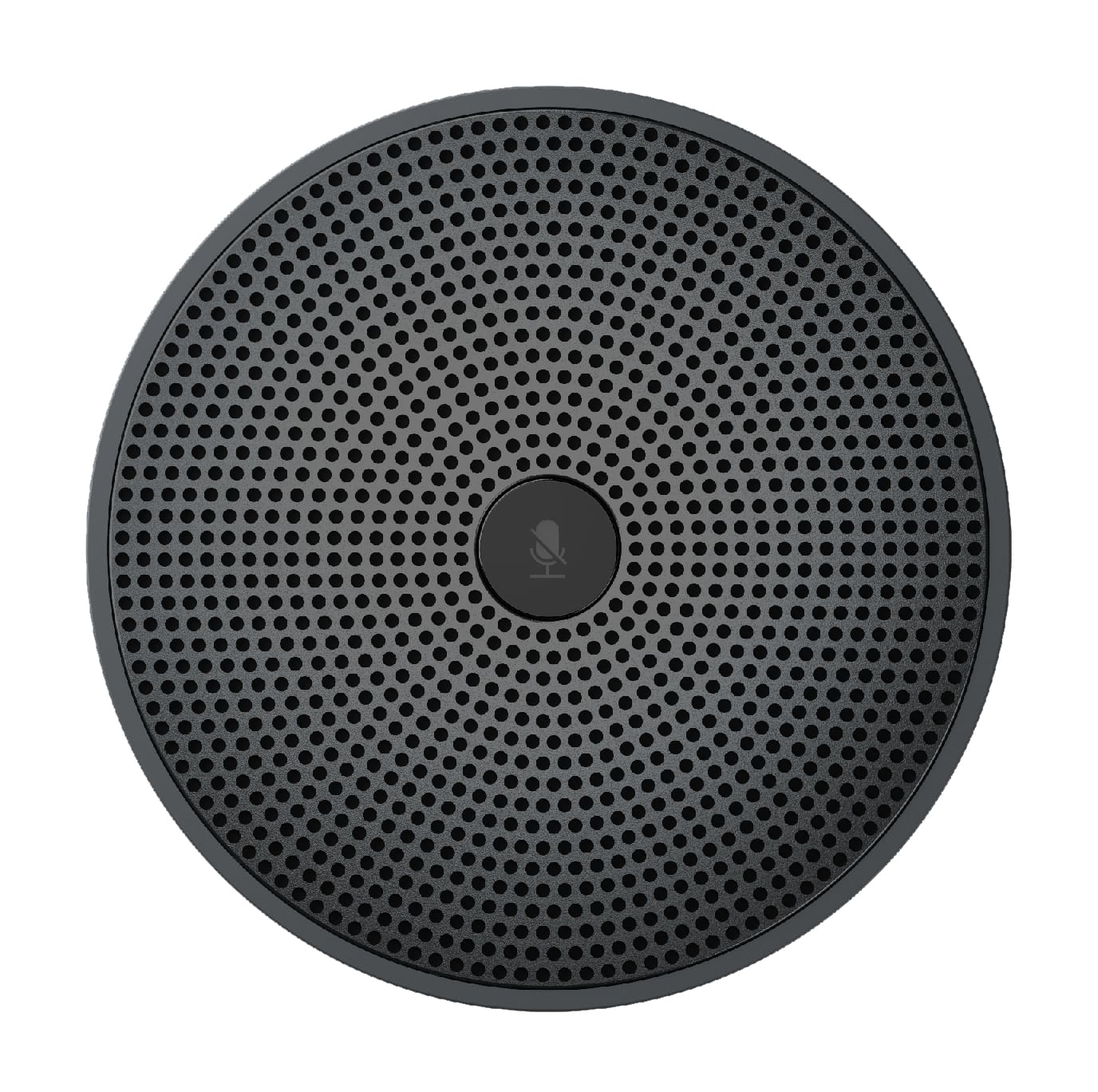

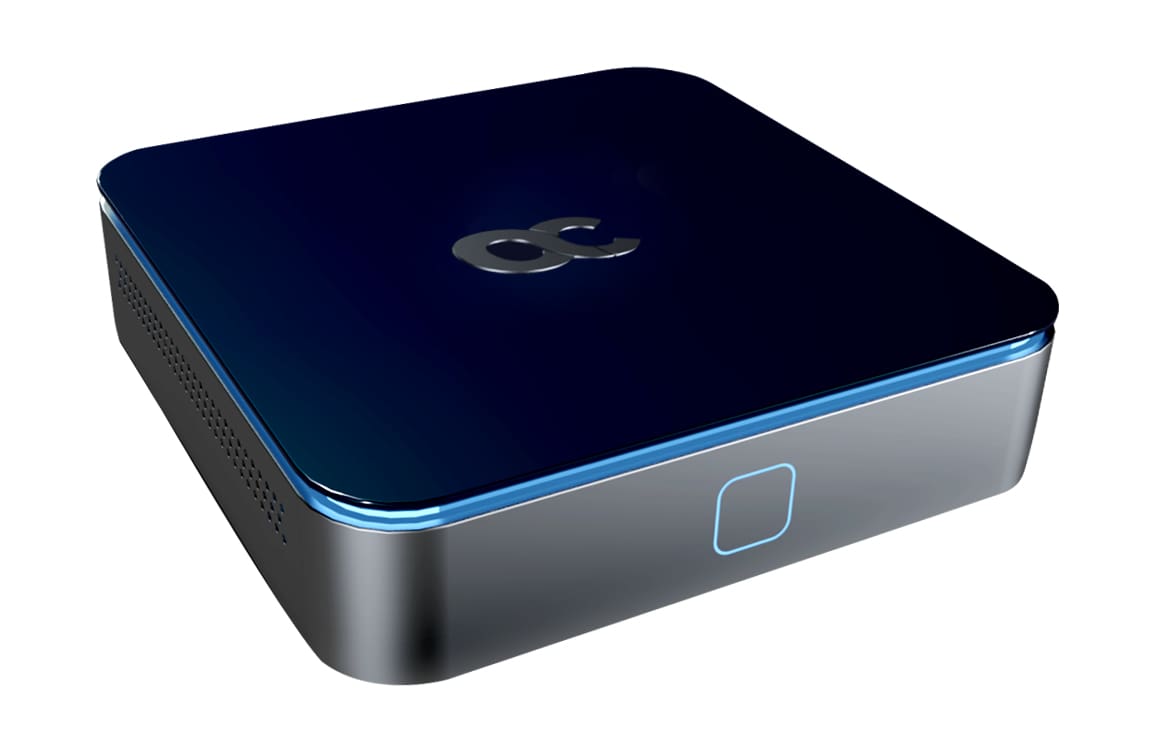

The RXV200-B40 bundle takes your medium to large meeting space to a complete meeting room with compute device (RXV200), camera (RXVCam50M), meeting room controller (RX-PAD), and sound bar with satellite speakers (RX40).Modern meeting devices must be adaptable enough to accommodate any room size or shape, while minimizing the number of table-mounted accessories and devices apart from a microphone and a meeting room controller like the AudioCodes RX-PAD. The RXV200 Android compute MTR is a robust, dependable and adaptable solution that enables an easy upgrade of any component within the meeting room, thereby facilitating the adoption of new and advanced devices to keep up with latest technology trends without excessive expenditure. Together with the RX-PAD meeting controller, it provides an easy meeting room experience that significantly boosts productivity.
| Feature |
Feature Value |
| Product type |
Group video conferencing system |
| Number of persons |
16 person(s) |
| Product colour |
Black |
| Number of cameras |
1 |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| PTZ control |
Yes |
| HD type |
4K Ultra HD |
| Maximum video resolution |
3840 x 2160 pixels |
| Supported graphics resolutions |
640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Aspect ratio |
16:9 |
| Resolution at capture speed |
640×480@25fps, 640×480@30fps, 1280×720@25fps, 1280×720@30fps, 1920×1080@25fps, 1920×1080@30fps, 3840×2160@30fps |
| Built-in speaker(s) |
Yes |
| Frequency range |
250 – 20000 Hz |
| Noise reduction |
Yes |
| Echo cancellation |
Yes |
| Automatic gain control |
Yes |
| Microphone pick-up range |
8 m |
| Speaker power |
40 W |
| USB connector type |
USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
1 |
| Interface module HDMI ports quantity |
3 |
| Interface module HDMI input ports quantity |
1 |
| Interface module HDMI output ports quantity |
2 |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p |
| Supported network protocols |
TCP/IP (IPv4) |
| Quality of Service (QoS) support |
Yes |
| VLAN support |
Yes |
| Security algorithms |
256-bit AES, 802.1x RADIUS, SRTP, TLS |
| Megapixel (approx.) |
8.28 MP |
| Sensor type |
CCD |
| Image sensor size |
1/2.5″ |
| Camera type |
Single camera |
| Zoom capability |
Yes |
| Digital zoom |
10x |
| Focal length range |
2.26 mm |
| Horizontal field of view |
100° |
| Vertical field of view |
64° |
| Diagonal field of view |
102° |
| 3D NR (Noise Reduction) |
Yes |
| Minimum illumination |
0.1 lx |
| Built-in display |
Yes |
| Display diagonal |
20.3 cm (8″) |
| Display resolution |
1280 x 800 pixels |
| Touchscreen |
Yes |
| Microphone colour |
Black |
| Microphone frequency |
300 – 8000 Hz |
| Number of microphones |
2 |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Computer system type |
Mini PC |
| Processor family |
Qualcomm Snapdragon |
| Processor model |
QCS8250 |
| Operating system installed |
Android |
| Operating temperature (T-T) |
-10 – 50 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-10 – 60 °C |
| Storage relative humidity (H-H) |
20 – 90% |
| Power source type |
DC |
| Current |
3 A |
| DC input voltage |
12 V |
| Interface module dimensions (W x D x H) |
170 x 170 x 41.3 mm |
| Interface module weight |
750 g |
| Speaker dimensions (WxDxH) |
800 x 90 x 56 mm |
| Speaker weight |
3.6 kg |
| Camera dimensions (WxDxH) |
220 x 93.75 x 56.5 mm |
