Description

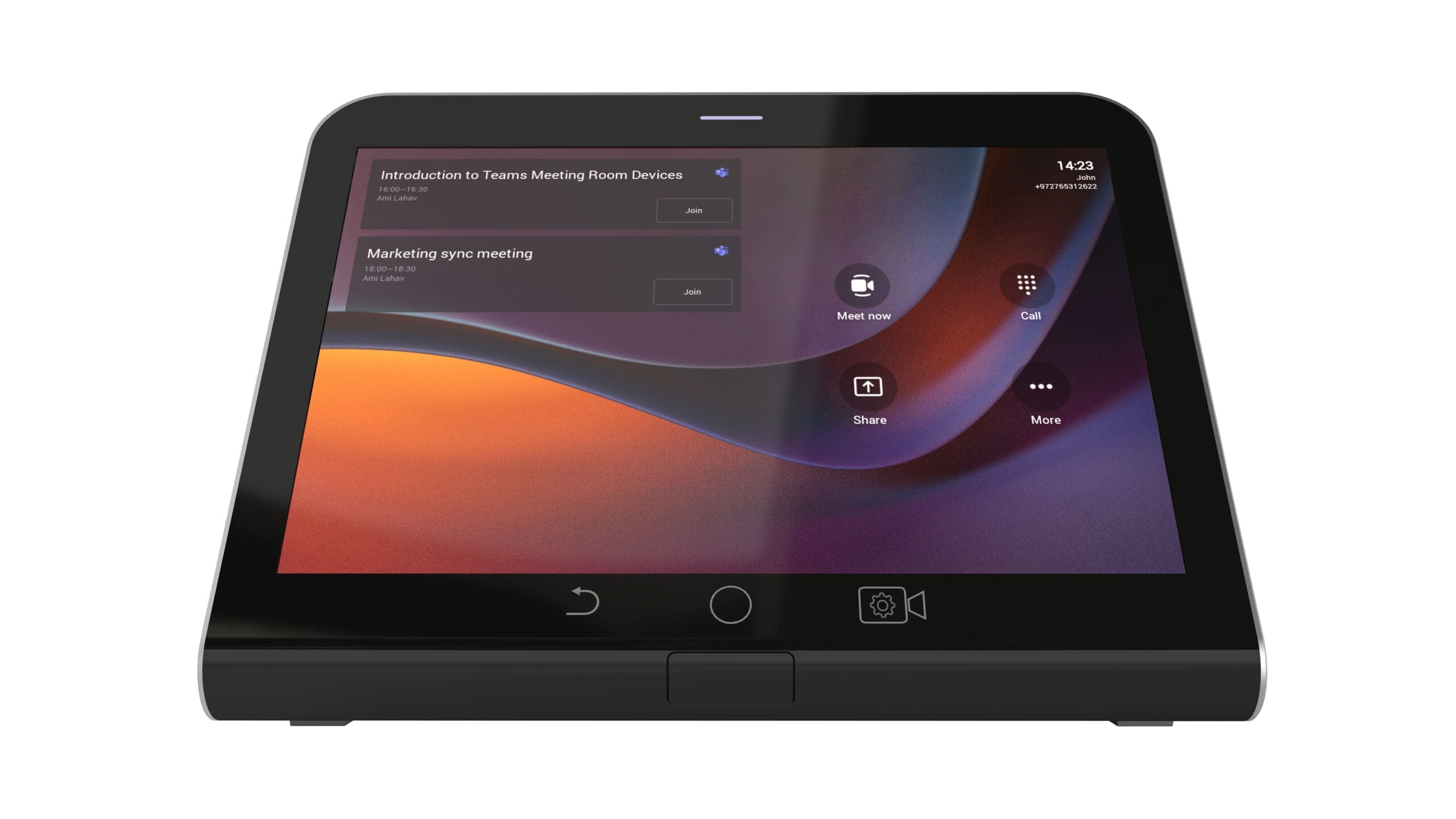

The AudioCodes RXV81 is a standalone Microsoft Teams Rooms on Android™ (MTR) video bar that takes plug-and-play simplicity to another level, resulting in a familiar and exceptionally productive Microsoft Teams meeting experience. When bundled with the RX-PAD as the room’s sleek touch controller, the user can easily set up and control meetings in any type of room via a central controller. The RXV81 embedded speakers and 6 mics, as well as Full HD and ePTZ with 5x zoom, provides outstanding image clarity and enhanced voice quality, making every meeting interactive and personable, as remote participants can see and hear everyone in the room, and can also participate in full Teams video and content sharing sessions.
| Feature |
Feature Value |
| Product type |
Group video conferencing system |
| Product colour |
Black |
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Tilt angle range |
-15 – 15° |
| PTZ control |
Yes |
| HD type |
4K Ultra HD |
| Maximum video resolution |
3840 x 2160 pixels |
| Resolution at capture speed |
1920×1080@30fps |
| Built-in speaker(s) |
Yes |
| Number of speakers |
1 |
| Audio system full duplex |
Yes |
| Noise reduction |
Yes |
| Echo cancellation |
Yes |
| RMS rated power |
10 W |
| Microphone pick-up range |
4.5 m |
| Clear Voice technology |
Yes |
| HDMI ports quantity |
1 |
| HDMI output ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-C |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power over Ethernet (PoE) ports quantity |
1 |
| AUX in (speaker) |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Supported network protocols |
TCP/IP (IPv4) |
| Quality of Service (QoS) support |
Yes |
| VLAN support |
Yes |
| Security algorithms |
256-bit AES, SRTP, TLS |
| Camera type |
Single camera |
| Zoom capability |
Yes |
| Digital zoom |
5x |
| Horizontal field of view |
110° |
| Vertical field of view |
75° |
| Diagonal field of view |
120° |
| Remote control interface |
Bluetooth |
| Built-in display |
Yes |
| Display diagonal |
20.3 cm (8″) |
| Display resolution |
1280 x 800 pixels |
| Touchscreen |
Yes |
| Number of microphone arrays |
6 |
| Operating system installed |
Android 9 |
| Power source type |
DC |
| Current |
3 A |
| DC input voltage |
12 V |
| Remote control dimensions (W x H x D) |
212 x 128.4 x 152.8 mm |
| Remote control weight |
908 g |
