Description

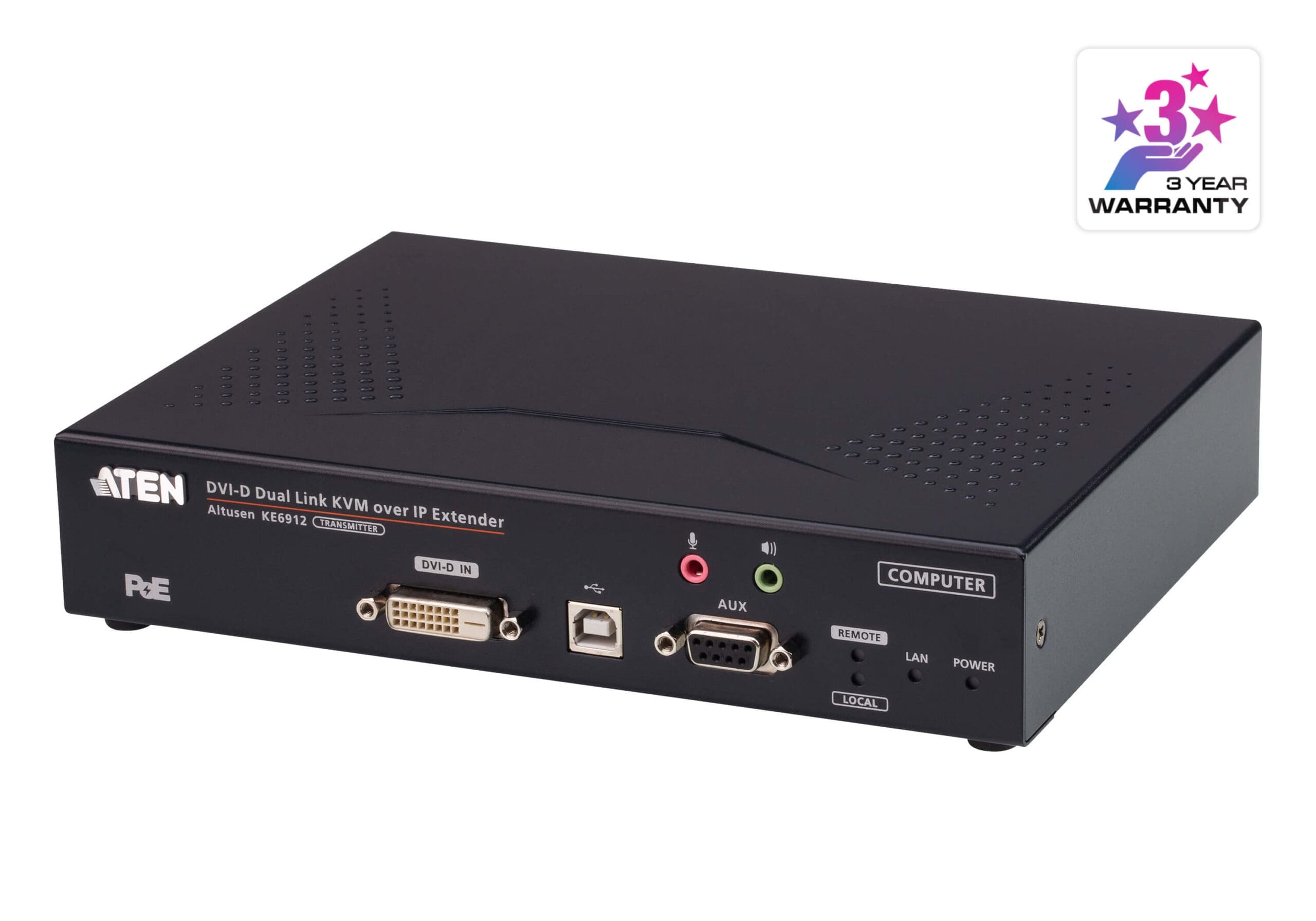

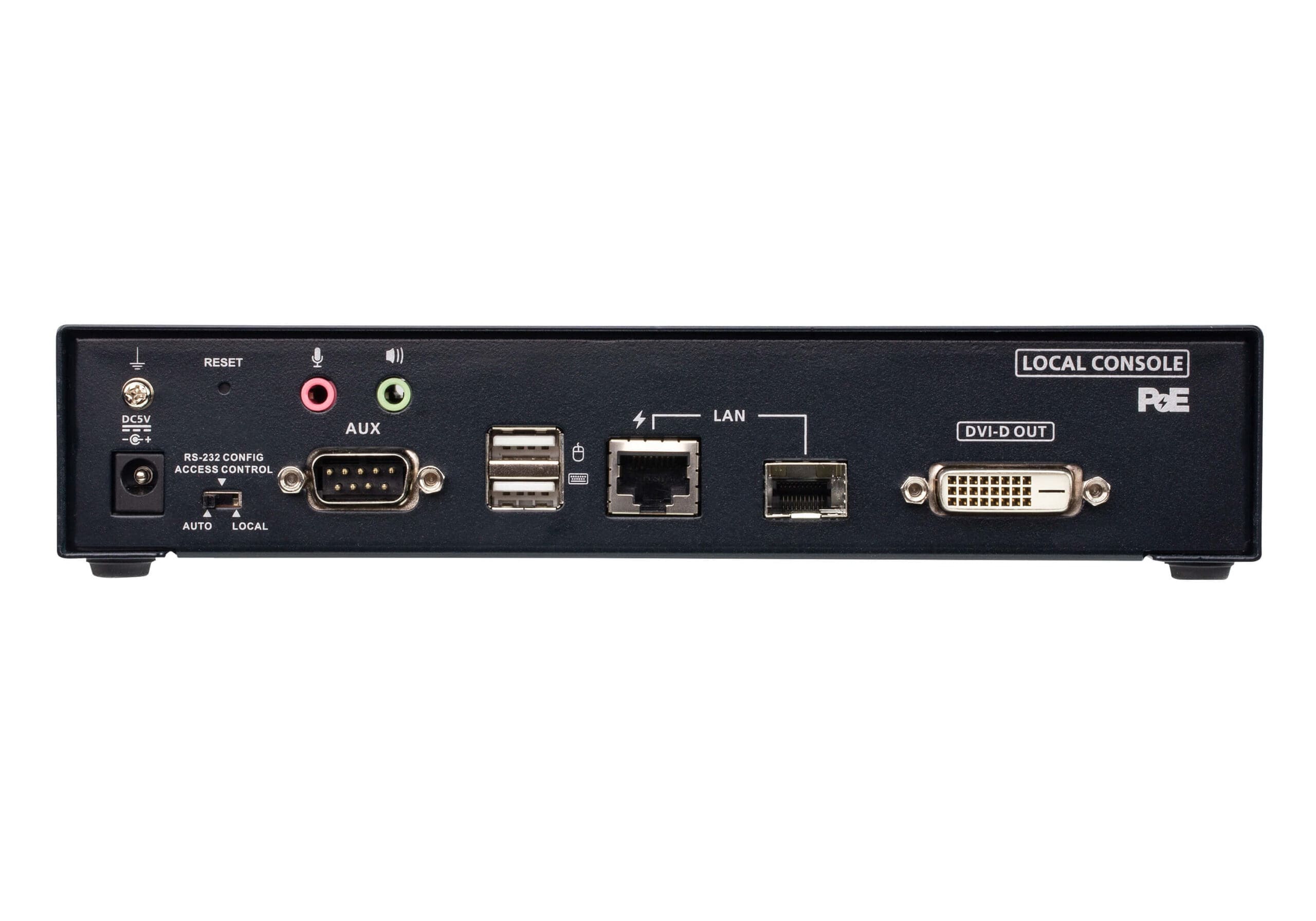

The KE6912 2K DVI-D Dual Link KVM over IP Extender consists of a high performance IP-based transmitter (KE6912T) that connects to the computer and receiver (KE6912R) that provides console access from a separate location. The KE6912 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users’ workstation.
1 x KE6912T 2K DVI-D Dual Link KVM over IP Transmitter
1 x LIN5-36W1-W11G KVM Cable (DVI-D dual-link, USB, Audio; 1.8m/6ft)
1 x Foot Pad Set (4 pcs.)
1 x Mounting Kit
1 x User Instructions
| Feature |
Feature Value |
| Type |
Transmitter |
| Connectivity technology |
Wired |
| Maximum transfer distance |
10000 m |
| Cable types supported |
Cat5e |
| Rack mounting |
Yes |
| Maximum digital resolution |
2560 x 2048 pixels |
| Product colour |
Black |
| Material |
Metal |
| LED indicators |
Yes |
| Certification |
RoHS |
| Transmitter video port type |
DVI-D |
| Transmitter local keyboard/mouse port type |
USB |
| RJ-45 ports quantity (transmitter) |
1 |
| AC adapter output voltage |
5 V |
| Power consumption (transmitter) (max) |
12.53 W |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 95% |
| Transmitter width |
21.5 cm |
| Transmitter depth |
16.3 cm |
| Transmitter height |
4.18 cm |
| Transmitter weight |
1.17 kg |
| Package width |
207 mm |
| Package depth |
414 mm |
| Package height |
117 mm |
| Package weight |
1.97 kg |
| Weight |
1.52 kg |
| Cables included |
KVM |
| Manual |
Yes |
| RS-232 ports |
1 |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| Master (outer) case net weight |
4.56 kg |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
370 mm |
| Master (outer) case length |
427 mm |
| Master (outer) case height |
232 mm |
| Master (outer) case gross weight |
6.61 kg |
| Products per master (outer) case |
3 pc(s) |
