Description
The ATEN CE611 is a USB DVI HDBaseT™ KVM Extender that integrates the latest HDBaseT™ technologies to transmit 1920 x 1200 DVI video, stereo audio, USB, and RS-232 signals up to 100 meters using a single Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands. With an easy cable installation that supports various signals, the CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

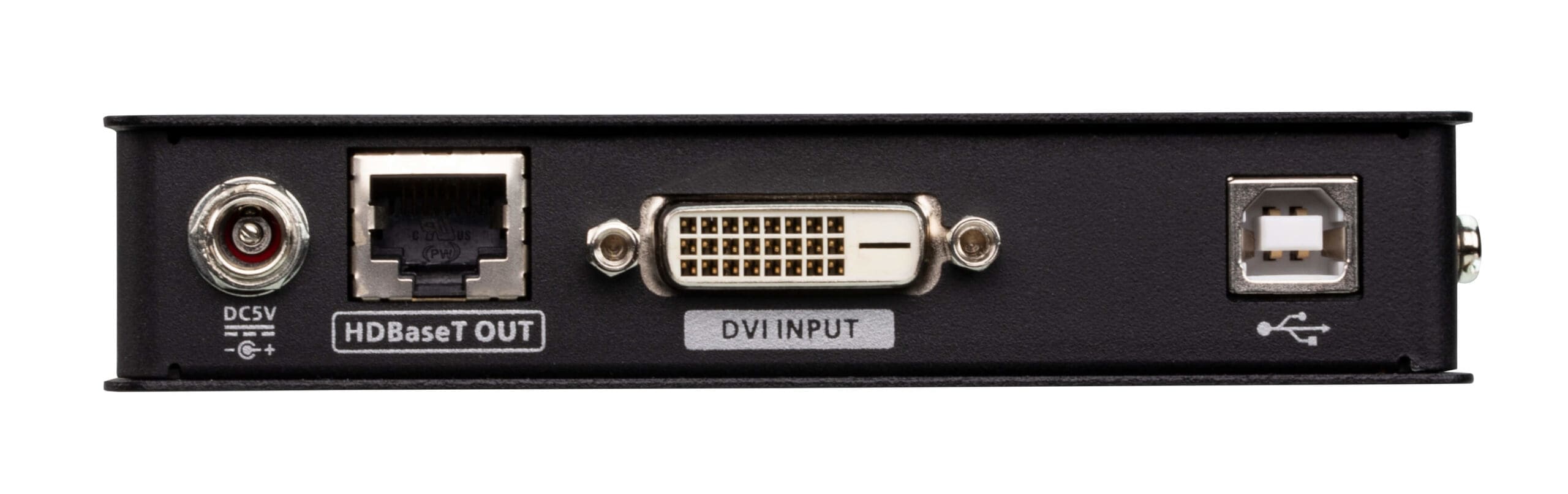

1x CE611L Mini USB DVI HDBaseT KVM Extender (Local Unit)
1x CE611R Mini USB DVI HDBaseT KVM Extender (Remote Unit)
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions
| Feature |
Feature Value |
| Type |
Transmitter & receiver |
| Connectivity technology |
Wired |
| Maximum transfer distance |
100 m |
| Cable types supported |
Cat6, Cat6a |
| Maximum digital resolution |
1920 x 1200 pixels |
| Supported resolutions |
1920×1200
1920×1080
1600×1200 |
| Firmware upgradeable |
Yes |
| Product colour |
Black |
| Material |
Metal |
| USB 2.0 ports quantity |
2 |
| USB data transfer rates |
480 Mbit/s |
| LED indicators |
Yes |
| Certification |
RoHS |
| Transmitter video port type |
DVI-D |
| Transmitter local keyboard/mouse port type |
USB |
| RJ-45 ports quantity (transmitter) |
1 |
| Receiver local video port type |
DVI-D |
| Receiver local keyboard/mouse port type |
USB |
| RJ-45 ports quantity (receiver) |
1 |
| Power consumption (transmitter) (max) |
2.494 W |
| Power consumption (receiver) (max) |
4.816 W |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Transmitter width |
12.8 cm |
| Transmitter depth |
8.69 cm |
| Transmitter height |
2.5 cm |
| Transmitter weight |
350 g |
| Receiver width |
12.8 cm |
| Receiver depth |
8.69 cm |
| Receiver height |
2.5 cm |
| Receiver weight |
340 g |
| Package width |
100 mm |
| Package depth |
283 mm |
| Package height |
173 mm |
| Package weight |
1.18 kg |
| Weight |
1.05 kg |
| AC adapter included |
Yes |
| Manual |
Yes |
| RS-232 ports |
2 |
| RJ-45 ports quantity |
2 |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| Master (outer) case net weight |
5.25 kg |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
292 mm |
| Master (outer) case length |
517 mm |
| Master (outer) case height |
194 mm |
| Master (outer) case gross weight |
6.32 kg |
| Products per master (outer) case |
5 pc(s) |
