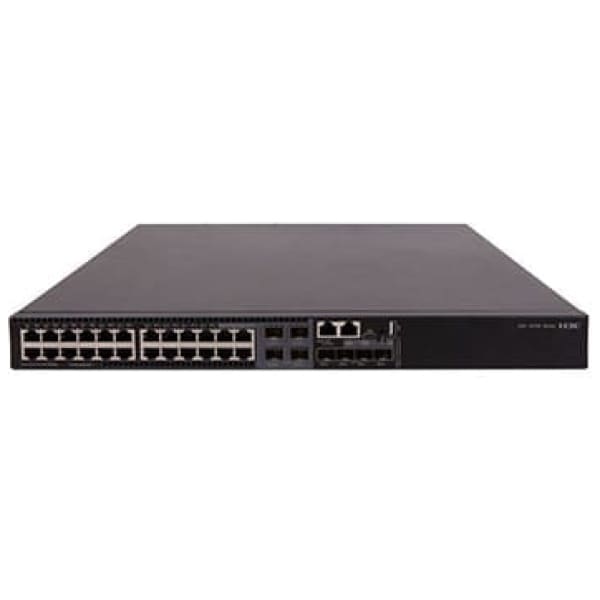

H3C S5130S-28S-PWR-HI L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: 9801A1MM Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
H3C Logo

Related products

Description

H3C S5130S-HI Switch Series – A robust (modular dual power), cost-effective and easy to deploy access switching solution with POE+ that offers enhanced security and 10GbE uplinks, static route, RIP ,OSPF, SDN and IRF enabled, flexible management.

Feature Feature Value
Switch layer L2
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 4
Networking standards IEEE 802.1ag, IEEE 802.3ah
10G support No
Port mirroring Yes
IP routing Yes
Link aggregation Yes
VLAN support Yes
Virtual LAN features Interface-based VLAN, Multicast VLAN, Protocol-based VLAN, VLAN mapping, Voice VLAN
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Forwarding rate 96 Mpps
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) Yes
Security algorithms SNMP, SNMPv2, SNMPv3
Static port security Yes
SSH/SSL support Yes
Authentication MAC-based authentication
Password protection Yes
Authentication type RADIUS
Rack mounting Yes
LED indicators Yes
Internal memory 512 MB
Flash memory 256 MB
Power supply included Yes
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
DC input voltage 48 – 60 V
Power over Ethernet (PoE) Yes
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 95%
Width 440 mm
Depth 460 mm
Height 43.6 mm
Weight 8.5 kg

Additional information

Switch layer

L2
10G support

No
IP routing

Yes
VLAN support

Yes
MAC address table

16000 entries
Forwarding rate

96 Mpps
Access Control List (ACL)

Yes
Static port security

Yes
Authentication

MAC-based authentication
Authentication type

RADIUS
LED indicators

Yes
Flash memory

256 MB
AC input voltage

100 – 240 V
DC input voltage

-48 – -60 V
Storage temperature (T-T)

-40 – 70 °C
Width

440 mm
Height

43.6 mm
Networking standards

IEEE 802.1ag, IEEE 802.3ah
Port mirroring

Yes
Link aggregation

Yes
Virtual LAN features

Interface-based VLAN, Multicast VLAN, Protocol-based VLAN, VLAN mapping, Voice VLAN
Switching capacity

128 Gbit/s
DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping
Security algorithms

SNMP, SNMPv2, SNMPv3
SSH/SSL support

Yes
Password protection

Yes
Rack mounting

Yes
Internal memory

512 MB
Power supply included

Yes
AC input frequency

50/60 Hz
Power over Ethernet (PoE)

Yes
Depth

460 mm
Weight

8.5 kg
