ATEN 8-Port 19″ LCD Cat5e/6 KVM Over IP Switch (Dual Rail)

Part No:

KL1508AIN

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

19 INCH 8P C5 D.Rail LCD KVM IP SW. W/UK KB

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: KL1508AIN Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

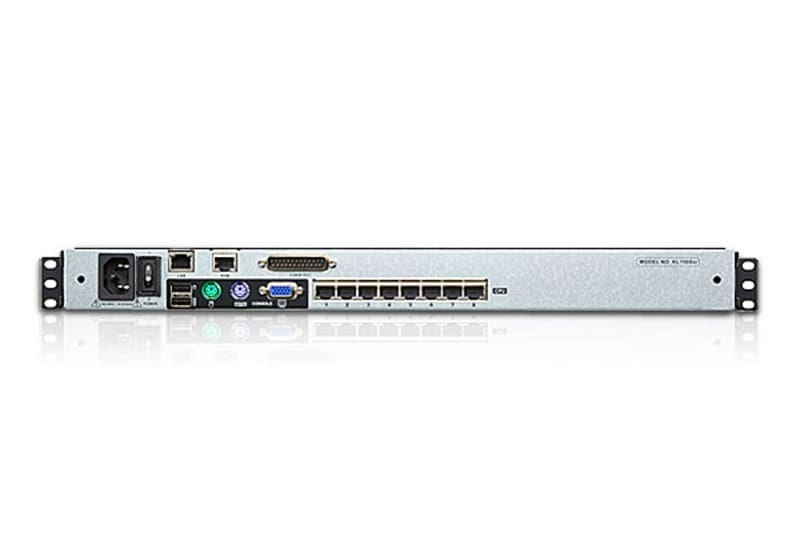

The KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.

The KL1508Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
1x KL1508Ai Dual Rail LCD KVM Switch
1x LIN2-418K-E12G Power Cord
1x Standard Rack Mount Kit
1x LIN5-04A2-J11G Firmware Upgrade Cable
2x L Brackets
1x User Instructions

Feature Feature Value
Number of computers controlled 8
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports PS/2, USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity 1
Console USB ports quantity 2
USB connector type USB Type-A
Serial port type RJ-45
Serial ports quantity 1
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Video bandwidth 60 Hz
Scan interval 1,255 s
Rack mounting Yes
Product colour Black
Rack capacity 1U
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Built-in display Yes
Display LCD
Display diagonal 48.3 cm (19″)
On Screen Display (OSD) Yes
Power source AC
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Input current 1 A
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 480 mm
Depth 701.2 mm
Height 44 mm
Weight 15.6 kg
Package width 668 mm
Package depth 833 mm
Package height 135 mm
Package weight 18.9 kg
Quick installation guide Yes
Manual Yes
Master (outer) case net weight 15.6 kg
Harmonized System (HS) code 85176200
Master (outer) case width 668 mm
Master (outer) case length 833 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 19.2 kg
Products per master (outer) case 1 pc(s)

Additional information

Mouse port type

USB, PS/2
Console ports

PS/2, USB A, VGA (D-Sub)
Console USB ports quantity

2
Serial port type

RJ-45
Ethernet LAN

Yes
HD type

WUXGA
Video bandwidth

60 Hz
Rack mounting

Yes
Rack capacity

1U
LED indicators

Yes
Hot keys

Yes
Display

LCD
On Screen Display (OSD)

Yes
AC input voltage

100 – 240 V
Input current

1 A
Storage temperature (T-T)

-20 – 60 °C
Depth

701.2 mm
Weight

15.6 kg
Package depth

833 mm
Package weight

18.9 kg
Manual

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

833 mm
Keyboard port type

USB, PS/2
Video port type

VGA
VGA (D-Sub) ports quantity

1
USB connector type

USB Type-A
Serial ports quantity

1
Ethernet LAN (RJ-45) ports

1
Maximum resolution

1920 x 1200 pixels
Scan interval

1,255 s
Product colour

Black
Housing material

Metal
Push button

Yes
Built-in display

Yes
Display diagonal

48.3 cm (19")
Power source

AC
AC input frequency

50/60 Hz
Operating temperature (T-T)

0 – 40 °C
Width

480 mm
Height

44 mm
Package width

668 mm
Package height

135 mm
Quick installation guide

Yes
Master (outer) case width

668 mm
Master (outer) case height

135 mm

Brand

Aten
