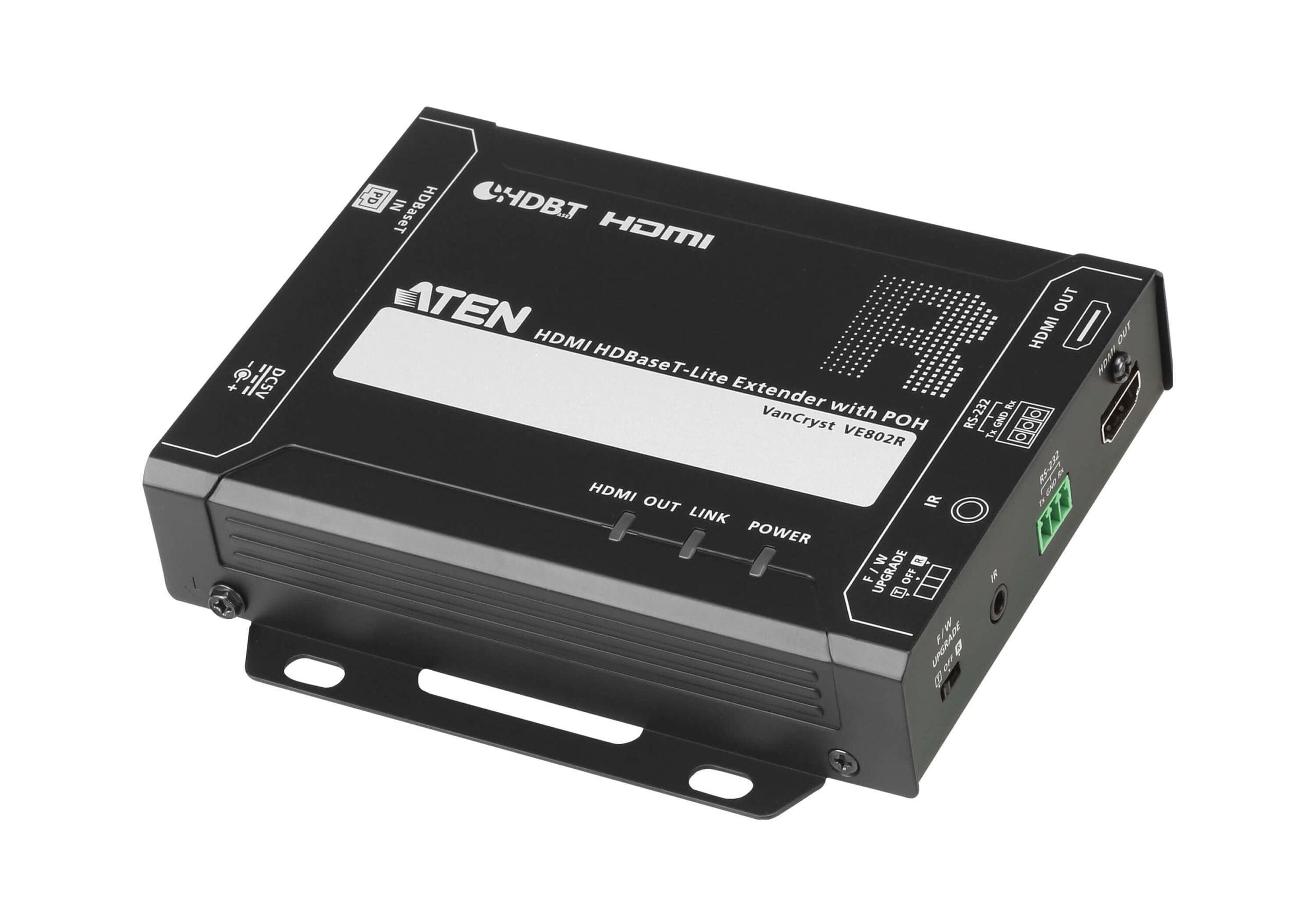

ATEN HDMI HDBaseT-Lite/Class B Receiver with POH (70m)

Part No:

VE802R

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VE802R HDBT Lite Receiver Over 1xCat5

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VE802R Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.

* Compatible HDBaseT Transmitter Units: VE802T
1x VE802R HDMI HDBaseT-Lite Receiver with POH
1x 0AD6-1F05-26EG Power Adapter
1x 2XRT-0003G IR Receiver
1x JCTN-3401-103G Terminal Block
1x User Instructions

Feature Feature Value
Type AV receiver
Maximum resolution 4096 x 2160 pixels
Cable types supported Cat5, Cat6, Cat6a
Maximum transfer distance 70 m
Supported video modes 2160p
Supported graphics resolutions 4096 x 2160
Bandwidth 10.2 Gbit/s
Bandwidth 340 MHz
HDCP Yes
Material Metal
Consumer Electronics Control (CEC) support Yes
Impedance 100 Ω
HDCP version 2.2
Product colour Black
Connectivity technology Wired
Number of HDMI outputs 1
RS-232 output ports 1
Audio output 1
Remote (IR) output 1
DC-in jack Yes
AC input frequency 60 Hz
Operating voltage 5 V
Power consumption (receiver) (max) 4.37 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Weight 654 g
Receiver dimensions (WxDxH) 123 x 140.4 x 30 mm
Receiver weight 460 g
Quantity per pack 1 pc(s)
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 768 g
Manual Yes
IR receiver included Yes
Master (outer) case width 250 mm
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Master (outer) case gross weight 4.32 kg
Master (outer) case net weight 3.27 kg
Products per master (outer) case 5 pc(s)

Additional information

Type

AV receiver
Cable types supported

Cat5, Cat6, Cat6a
Supported video modes

2160p
HDCP

Yes
HDCP version

2.2
Connectivity technology

Wired
RS-232 output ports

1
Remote (IR) output

1
AC input frequency

60 Hz
Storage temperature (T-T)

-20 – 60 °C
Weight

654 g
Receiver weight

460 g
Package width

59 mm
Package height

160 mm
Manual

Yes
Master (outer) case width

250 mm
Master (outer) case height

175 mm
Maximum resolution

4096 x 2160 pixels
Maximum transfer distance

70 m
Bandwidth

10.2 Gbit/s, 340 MHz
Material

Metal
Impedance

100 Ω
Product colour

Black
Number of HDMI outputs

1
Audio output

1
DC-in jack

Yes
Operating voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Receiver dimensions (WxDxH)

123 x 140.4 x 30 mm
Quantity per pack

1 pc(s)
Package depth

239 mm
Package weight

768 g
IR receiver included

Yes
Master (outer) case length

325 mm

Brand

Aten
