ATEN HDMI HDBaseT-Lite/Class B Receiver with Scaler function (70m)

Part No:

VE805R

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VE805R HDBT Lite Receiver Over Cat5

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VE805R Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

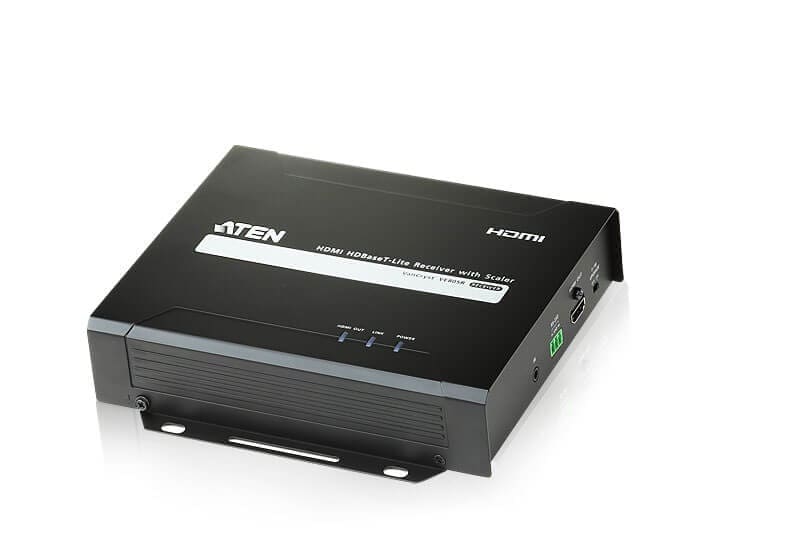

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
1x 0AD6-1F05-26EG Power Adapter
1x 2XRT-0003G IR Transmitter
1x 2XRT-0004G IR Receiver
1x Terminal Block
1x User Instructions

Feature Feature Value
Type AV receiver
Maximum resolution 1920 x 1080 pixels
Cable types supported Cat5e, Cat6, Cat6a
Maximum transfer distance 60 m
Supported video modes 1080p
On/off switch Yes
Class B
HDCP Yes
Material Metal
Wall mountable Yes
Impedance 100 Ω
HDCP version 1.4
Product colour Black
RJ-45 input ports 1
Number of HDMI outputs 1
HDMI version 1.4
RS-232 input ports 1
Remote (IR) input 1
DC-in jack Yes
Operating voltage 5 V
Power consumption (typical) 9.5 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 169.2 mm
Depth 177.4 mm
Height 42 mm
Weight 1.05 kg
Package width 98 mm
Package depth 325 mm
Package height 210 mm
Package weight 1.24 kg
Master (outer) case width 342 mm
Master (outer) case length 512 mm
Master (outer) case height 232 mm
Master (outer) case gross weight 6.85 kg
Master (outer) case net weight 5.25 kg
Products per master (outer) case 5 pc(s)

Additional information

Type

AV receiver
Cable types supported

Cat5e, Cat6, Cat6a
Supported video modes

1080p
Class

B
Material

Metal
Impedance

100 Ω
Product colour

Black
Number of HDMI outputs

1
RS-232 input ports

1
DC-in jack

Yes
Power consumption (typical)

9.5 W
Storage temperature (T-T)

-20 – 60 °C
Width

169.2 mm
Height

42 mm
Package width

98 mm
Package height

210 mm
Master (outer) case width

342 mm
Master (outer) case height

232 mm
Maximum resolution

1920 x 1080 pixels
Maximum transfer distance

60 m
On/off switch

Yes
HDCP

Yes
Wall mountable

Yes
HDCP version

1.4
RJ-45 input ports

1
HDMI version

1.4
Remote (IR) input

1
Operating voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Depth

177.4 mm
Weight

1.05 kg
Package depth

325 mm
Package weight

1.24 kg
Master (outer) case length

512 mm

Brand

Aten
