ATEN HDMI Receiver only over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)

Part No:
VE801R
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Last few available! Order now: Only 2 left.

VE801R-AT-E

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VE801R Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

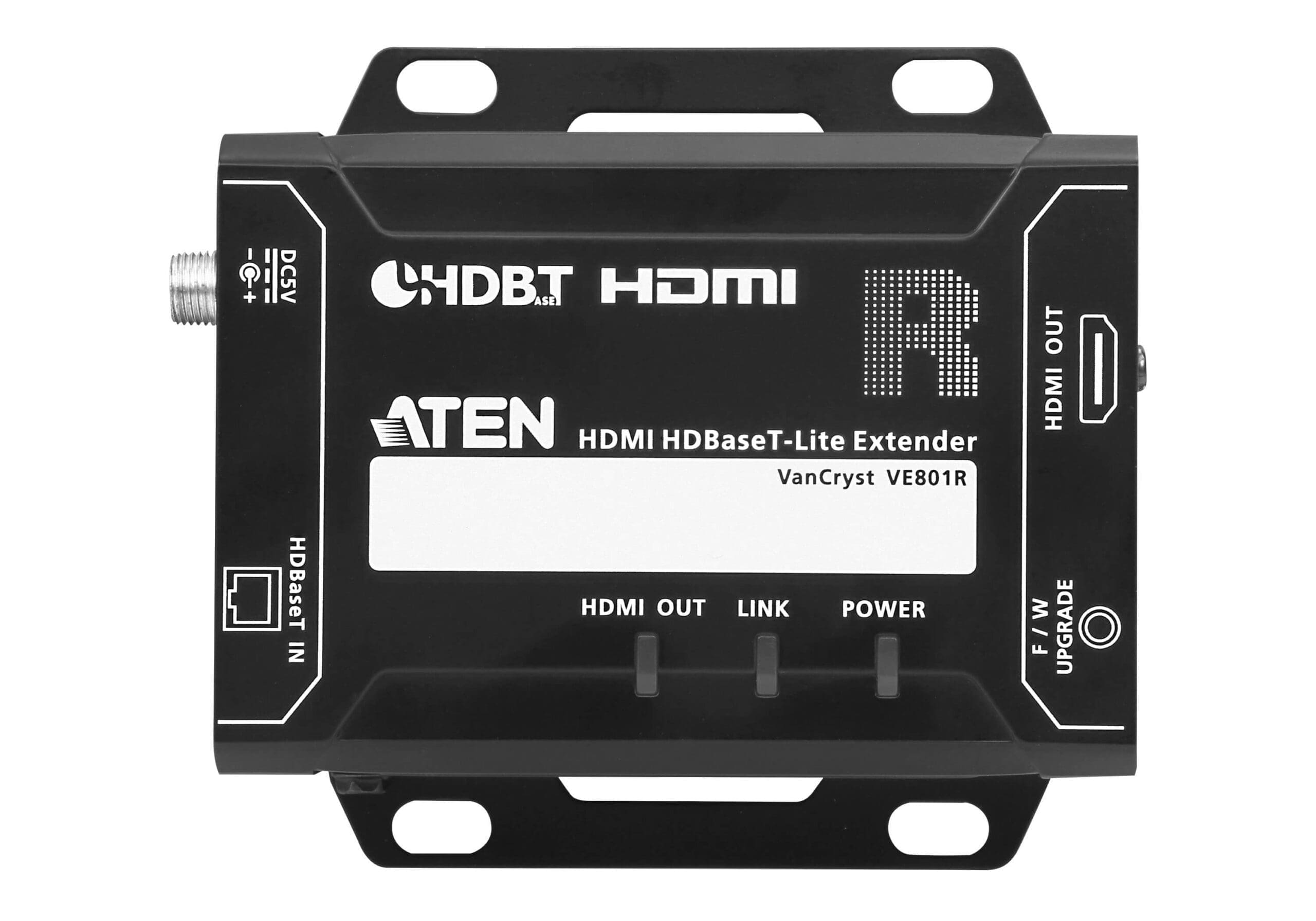

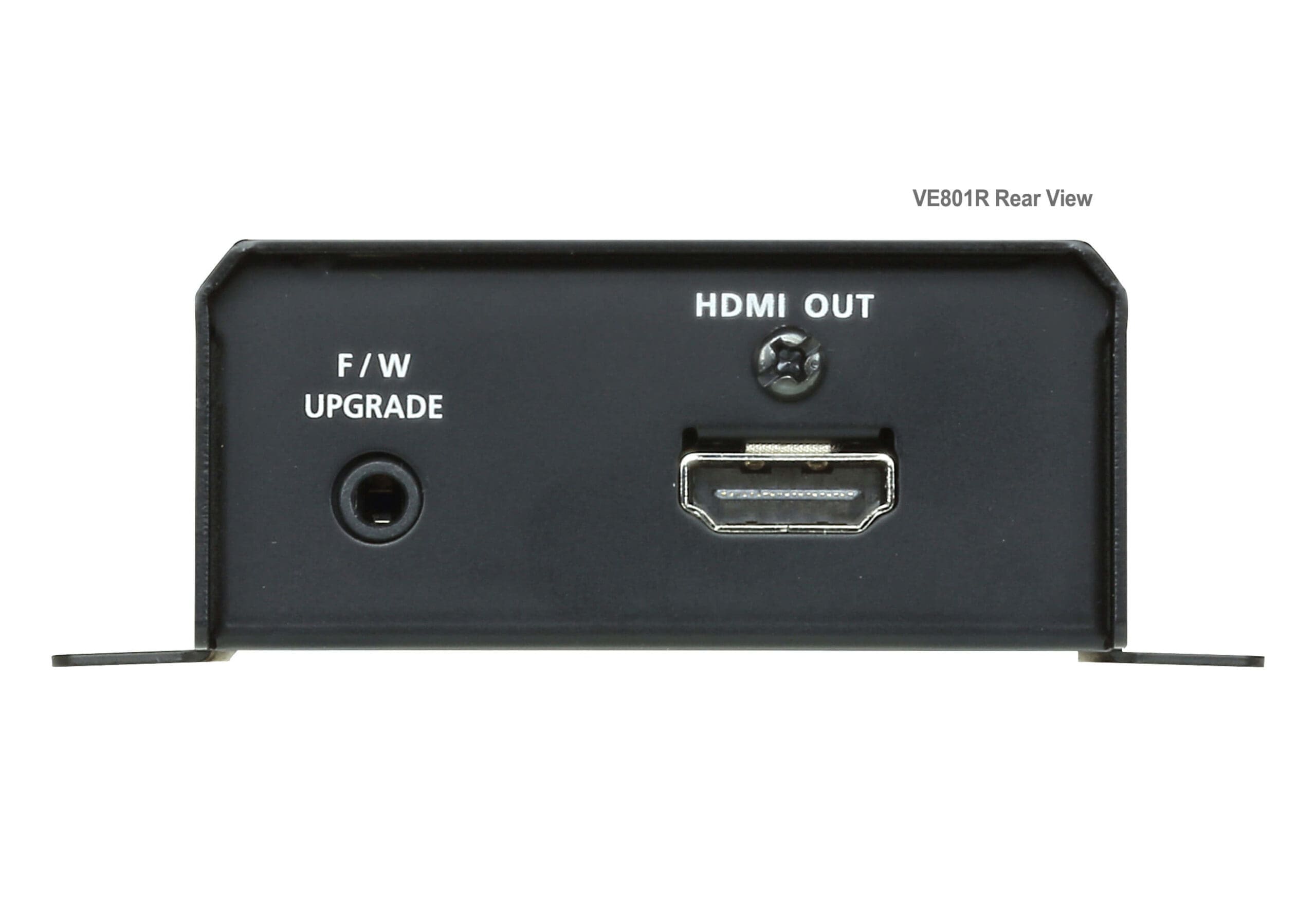

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

* Compatible HDBaseT Transmitter Units: VE801T

Feature Feature Value
Type AV receiver
Maximum resolution 3840 x 2160 pixels
Cable types supported Cat5e, Cat6, Cat6a
Maximum transfer distance 70 m
LED indicators Yes
Supported video modes 1080p
Bandwidth 340 MHz
HDCP Yes
Material Metal
Product colour Black
Ethernet LAN Yes
RJ-45 input ports 1
Number of HDMI outputs 1
DC-in jack Yes
Power consumption (typical) 4.23 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Dimensions (WxDxH) 87 x 103 x 30 mm
Weight 250 g
AC adapter included Yes
Compliance certificates RoHS

Additional information

Type

AV receiver
Cable types supported

Cat5e, Cat6, Cat6a
LED indicators

Yes
Bandwidth

340 MHz
Material

Metal
Ethernet LAN

Yes
Number of HDMI outputs

1
Power consumption (typical)

4.23 W
Storage temperature (T-T)

-20 – 60 °C
Dimensions (WxDxH)

87 x 103 x 30 mm
AC adapter included

Yes
Maximum resolution

3840 x 2160 pixels
Maximum transfer distance

70 m
Supported video modes

1080p
HDCP

Yes
Product colour

Black
RJ-45 input ports

1
DC-in jack

Yes
Operating temperature (T-T)

0 – 50 °C
Weight

250 g
Compliance certificates

RoHS

Brand

Aten
