ATEN KE6940 AV transmitter & receiver Black

Part No:

KE6922T

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£1,687.87
£2,025.44
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

DVI-D Dual Link KVM over IP Tx POE

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: KE6922T Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

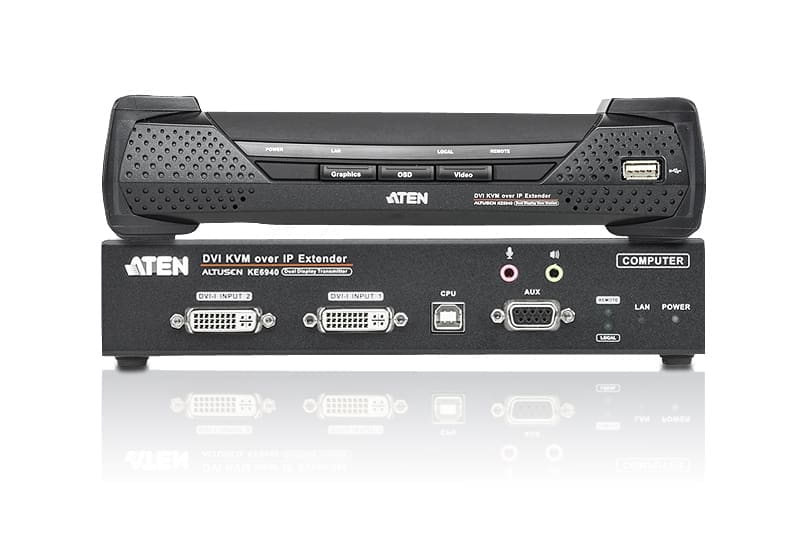

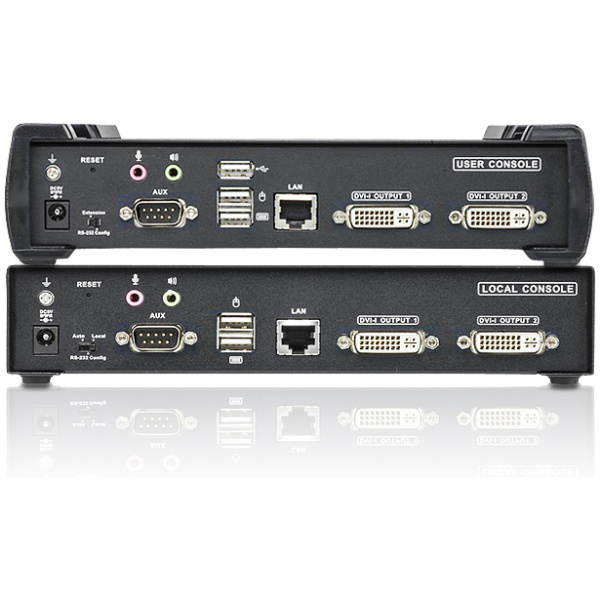

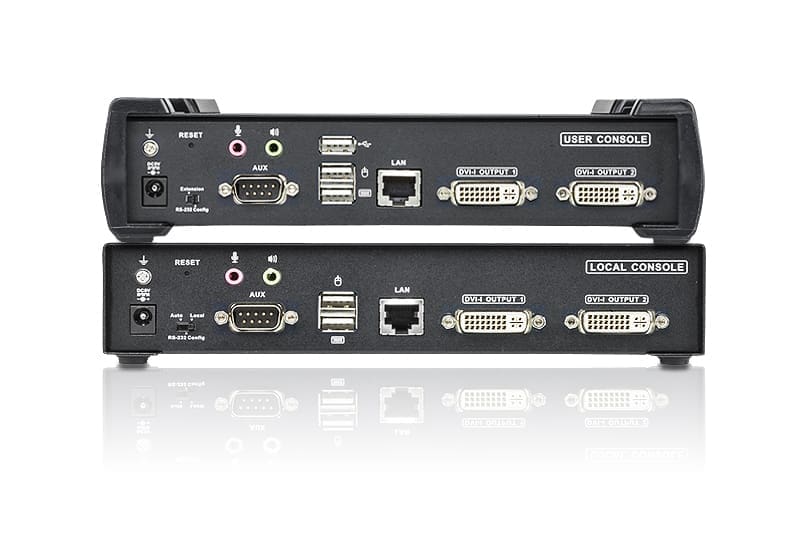

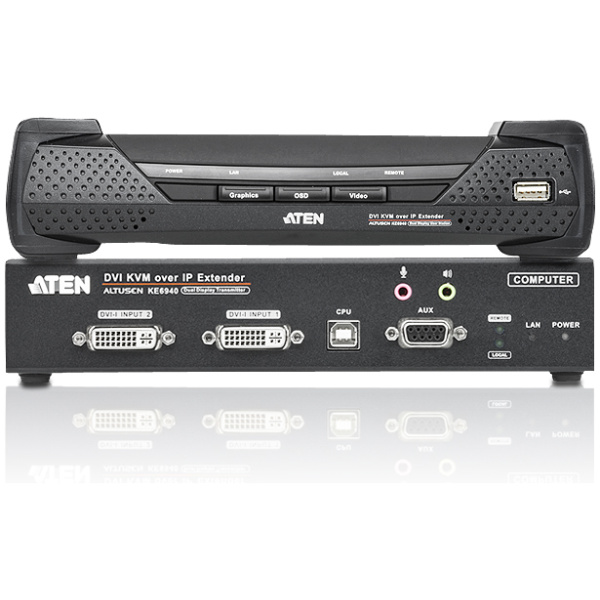

ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new Altusen™KE6940 DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.

Feature Feature Value
Type AV transmitter & receiver
Maximum resolution 1920 x 1200 pixels
LED indicators Yes
Material Metal
Product colour Black
Compatibility CS72D,CS1642A,CS1184,CS1782A,CS1784A,CM0264,CS1762A,CS1764A,CS1732B,CS1734B,KL1516Ai,CL6700,CM1164,CS1308,CS1732A,CE604,CS1734A,CS1708A,CS22D,CL5716,CS682,KN4140v,KL3116,2L-7D02UI,CE750,2L-7D03UI,2L-7D02I,2L-7D02U,CCKM,2L-7D03U,CS62U,2L-7D05U,UC10KM,CL5716M,CL5716N,2X-021G,2X-031G,2L-7DX2U,2L-7DX3U,ES0152,ES0152P,CL3884NW
Connectivity technology Wired
RJ-45 input ports 2
DVI input ports 2
DVI output ports 4
USB ports quantity 6
USB version 2.0
USB connector type USB Type-A, USB Type-B
Audio input 2
Audio output 2
Serial ports quantity 3
Serial interface type RS-232
DC-in jack Yes
Operating voltage (transmitter) 5 V
Operating voltage (receiver) 5 V
Power consumption (transmitter) (max) 8.91 W
Power consumption (receiver) (max) 9.53 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Receiver dimensions (WxDxH) 215 x 162.9 x 45.6 mm
Receiver weight 1.15 kg
Transmitter dimensions (WxDxH) 227.5 x 171.6 x 54.8 mm
Transmitter weight 1.25 kg
Package width 247 mm
Package depth 556 mm
Package height 153 mm
Package weight 4.78 kg
AC adapter included Yes
Packaging content 1x KE6940T DVI KVM Over IP Extender (Transmitter)
1x KE6940R DVI KVM Over IP Extender (Receiver)
2x 0AD8-8005-40MG Power Adapters
2x LIN2-418K-E12G Power Cord
1x 2L-7D02U USB DVI-D KVM Cable (1.8m)
1x LIN5-26W1-W11G DVI-D Cable (1.8m)
1x Foot Pad Set (4 pcs.) for KE6400T
1x Mounting Kit for KE6940T
1x User Instruction
Country of origin Taiwan
Master (outer) case width 247 mm
Master (outer) case length 556 mm
Master (outer) case height 153 mm
Master (outer) case gross weight 4.78 kg
Master (outer) case net weight 3.96 kg
Products per master (outer) case 1 pc(s)

Additional information

Type

AV transmitter & receiver
LED indicators

Yes
Product colour

Black
Connectivity technology

Wired
DVI input ports

2
USB ports quantity

6
USB connector type

USB Type-A, USB Type-B
Audio output

2
Serial interface type

RS-232
Operating temperature (T-T)

0 – 50 °C
Receiver dimensions (WxDxH)

215 x 162.9 x 45.6 mm
Package width

247 mm
Package height

153 mm
AC adapter included

Yes
Country of origin

Taiwan
Master (outer) case length

556 mm
Maximum resolution

1920 x 1200 pixels
Material

Metal
Compatibility
RJ-45 input ports

2
DVI output ports

4
USB version

2.0
Audio input

2
Serial ports quantity

3
DC-in jack

Yes
Storage temperature (T-T)

-20 – 60 °C
Receiver weight

1.15 kg
Transmitter weight

1.25 kg
Package depth

556 mm
Package weight

4.78 kg
Packaging content
Master (outer) case width

247 mm
Master (outer) case height

153 mm

Brand

Aten
