Description
The VE883A is a True 4K HDMI Optical extender that consists of a transmitter VE883AT and a receiver VE883AR to transmit up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) HDMI, audio, USB 2.0, IR, RS-232, and Gigabit Ethernet signals across 300 m (VE883AK1) or 10 km (VE883AK2) over a single duplex fiber optic cable losslessly. While helping avoid bulky cable setup, fiber optic cables are electrically isolated, thus they are immune to RFI and EMI. With ATEN’s exclusive FarSmooth technology, the VE883A prevents lagging and freezing by matching the output rates to the input rates and ensures that the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.

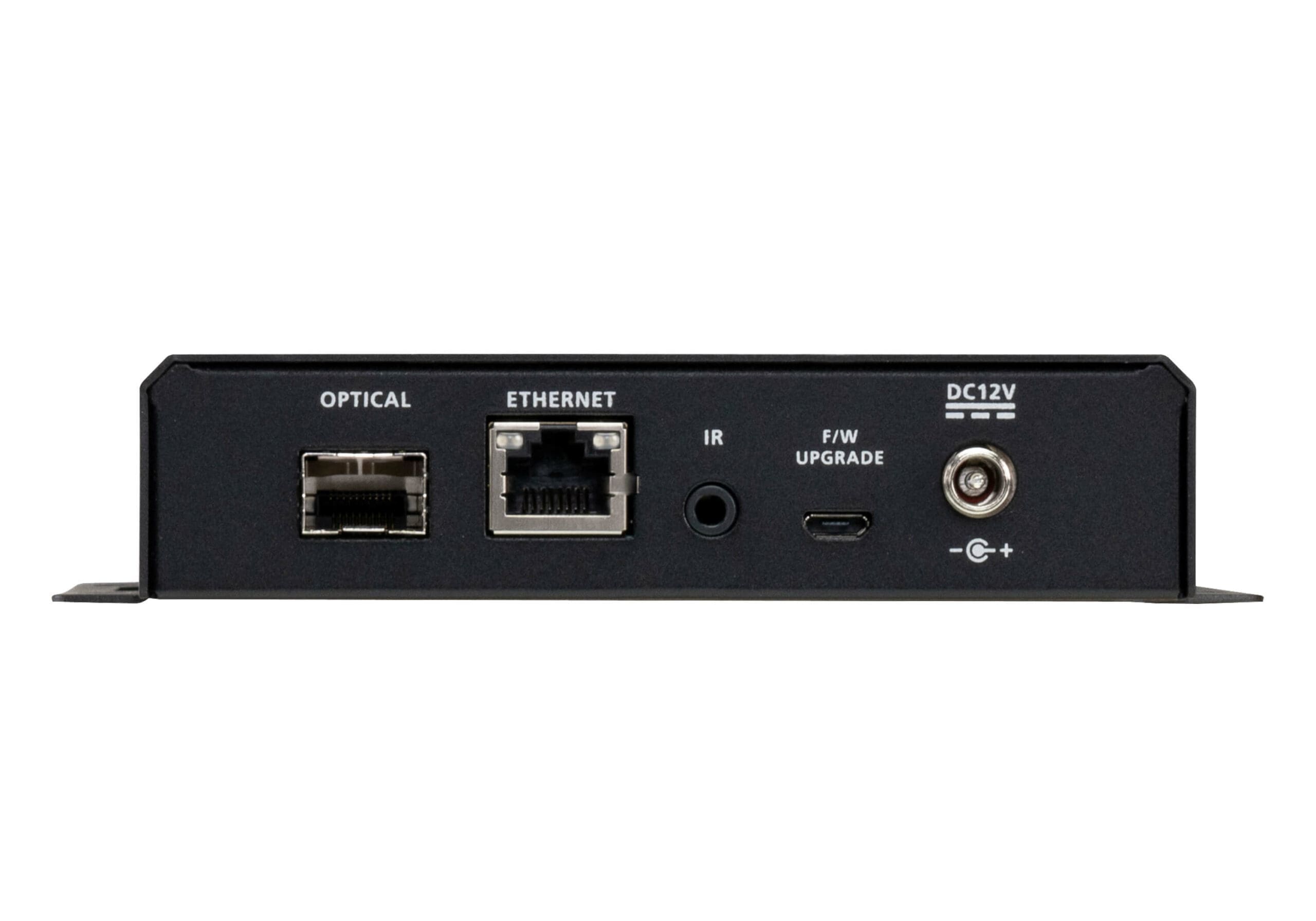

The VE883A comes with interfaces of HDMI input / output, analog audio input / output, USB 2.0, IR, RS-232, and Gigabit Ethernet. Connectivity with USB peripherals is expanded thanks to the VE883A’s dual USB Type-A ports. For point-to-point extension, pluggable SFP+ modules are included to serve the purpose of optical connection. Plus, the VE883A is compatible with ATEN’s VM7584 / VM8584 Optical Input / Output Board installed in ATEN’s modular matrix switches to broaden applications. It is suitable for installations where True 4K video transmission across a long distance and electrical isolation are essential, such as control rooms, factories, and hospitals.
| Feature |
Feature Value |
| Type |
AV transmitter & receiver |
| Maximum resolution |
4096 x 2160 pixels |
| Cable types supported |
Fiber |
| Maximum transfer distance |
300 m |
| Fiber optic wavelengths supported |
850 nm |
| Fiber mode structure |
Multi-mode |
| Bidirectional |
Yes |
| Electrostatic Discharge (ESD) protection |
Yes |
| Electrostatic Discharge (ESD) protection |
15 kV |
| LED indicators |
Yes |
| Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
| Bandwidth |
10.2 Gbit/s |
| Bandwidth |
340 MHz |
| HDCP |
Yes |
| Material |
Metal |
| 3D |
Yes |
| Firmware upgradeable |
Yes |
| Plug and Play |
Yes |
| HDCP version |
2.2 |
| Product colour |
Black |
| Connectivity technology |
Wired |
| Ethernet LAN |
Yes |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| Fiber optic connector |
LC |
| USB ports quantity |
1 |
| USB version |
2.0 |
| USB connector type |
Micro-USB B |
| DC-in jack |
Yes |
| Operating voltage |
5 V |
| Power consumption (transmitter) (max) |
7.01 W |
| Power consumption (receiver) (max) |
6.5 W |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Receiver dimensions (WxDxH) |
146.9 x 169.4 x 30 mm |
| Receiver weight |
660 g |
| Transmitter dimensions (WxDxH) |
146.9 x 169.4 x 30 mm |
| Transmitter weight |
670 g |
| Package width |
116 mm |
| Package depth |
540 mm |
| Package height |
233 mm |
| Package weight |
3.06 kg |
| AC adapter included |
Yes |
| Cables included |
USB |
| IR emitter included |
Yes |
| IR receiver included |
Yes |
| Country of origin |
Taiwan |
| Sustainability certificates |
RoHS |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
375 mm |
| Master (outer) case length |
565 mm |
| Master (outer) case height |
258 mm |
| Master (outer) case gross weight |
10.1 kg |
